Understanding CLS configurations: Spool vs horizontal pressure tank

Hash and Stuff Extraction
, ,
1

Hey all, I am looking invest in my first CLS to help process the plants that my neighbors and I are able to produce legally each year in our state. We’ve had some great fun open blasting on a folding table in the middle of a field but looking to tighten things up a bit both safety and cost wise.

In my research there seems to be two popular configurations of low end closed loop systems:

  • Spool based
    • These are the entry level BVV/Bhogart systems that are popular among hobbyists. These seem to universally support a single extraction column of varying width based on top vs bottom fill.
  • Horizontal pressure tank (ASME)
    • These seem to universally support two or more extraction columns, usually skinny top fills based on my observations.

Are there any inherent differences between either of these types of systems worth considering? We’d be looking for something with inline dewax and nitrogen assist either way. Both types of systems to be within reach if you are willing to spend up to 2k second hand.

2

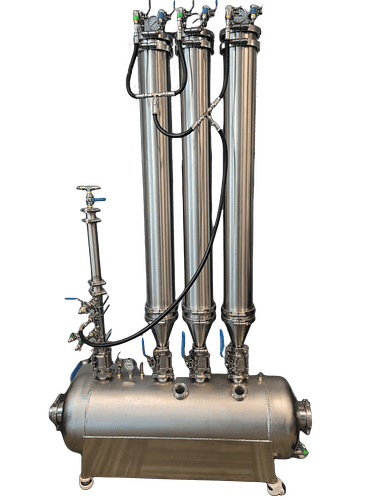

This is what I mean by a horizontal pressure tank configuration btw.

IMG_2355
IMG_23551500×2000 589 KB

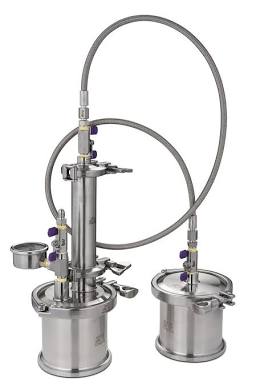

And of course the spool based systems you see frequently.

IMG_2356
IMG_2356256×390 11.1 KB

3

Yeah, except BHOgart uses a horizontal evaporator…

eg: BHOGart closed loop

@Photon_noir bumped The History of the Terpenator According to Gospel this morning. Maybe start there.

Then check out Let's see your set up!

3 Likes
4

It puts the cannabis in the tube….

1 Like
5

BHOgart wanted to take advantage of the increased surface area of laying the jacketed vessel on it’s side, but more bottom surface area also means more retained oil in your vessel. It all comes down to how many lbs you want to process in a given period.

6 Likes
6

It also helped get away from the stupid tall/top heavy monstrosities that Eg subzero were building.

@ChoGrows probably another decent thread to explore…Very New to BHO and Need Advice!

4 Likes
7

Hence Windchime tek lol

4 Likes
8

Main diffrance is evaporation surface the bigger the surface the faster the evaporation if all other parameters are equal

1 Like
9

This hit on something I hadn’t noticed before. All of those second hand horizontal tanks seem to be jacketed. I think that alone puts this style of system out of reach for me. At least, in my head an inline dewax and refrigerant recovery pump and a condensing coil is about as far as I’m willing to go at this point.

Don’t get me wrong, a neighbor grew an 8lb plant last year and stuffing it into a single batch would have been nice.

10

Appreciate the links. It seems the horizontal design was intended to increase surface area as others have mentioned but the terpenator guy thinks that the reduction of surface area as the liquid level drop makes this moot.

Seems like not being able to pop the top of the spool off would also be an inconvenience. I donno, not seeing any great reasons to go horizontal esp at hobby scale.

@Bill-bro.Dabbins OT but my usertag on my first canna forum was something like JRR Tokin :stuck_out_tongue:
