My love for building extractors (diy)

Hash and Stuff Extraction
, ,
81

An open sleeve tube in shell like @FicklePickle would look sexy on the end of that rack (where coils are at)

I love this build.

7 Likes
82

image810×1080 121 KB
image608×1080 69.1 KB

I call it, “the xersist”

:wink:

46 Likes
83

That’s bad ass

3 Likes
84

How much did that run you? The main reason I’m going with tube n tube or ordinary circular tubing is the pricing on them damn condensers.

1 Like
85

This is originally @TwistedStill’s concept, designed and commissioned by yours truly, and built by @GreenMachine_Consult.

It’s a recovery monster. It creates an unreal amount of vacuum on your recovery system.
All passive!

:call_me_hand:

22 Likes
86

Nice work my friend. I had something similar in my design, but gave up on the welding costs for the time being. Love the design though. Easy dumping for DI on the top. Kudos

3 Likes
87

how do i get my hands on one of those? can u dm me?

1 Like
88

@GreenMachine_Consult has them for sale

2 Likes
89

Are u making a revision with cema @FicklePickle? How much are the @GreenMachine_Consult ones?

90

That’ll make it scream

1 Like
91

image3024×4032 5.27 MB

Sneak preview
New Topic Alert
Will post whole article in the next coming days.

16 Likes
92

Damn im gonna need one

3 Likes
93

image3024×4032 2.72 MB

Picked a helluva day to move into the new lab.

OKC 12/13

16 Likes
94

image3024×4032 3.24 MB

Sneak preview. (3 more days!!!)

13 Likes
95

image3024×4032 2.96 MB

That was a heavy bitch to lift up there. (~285 lbs)

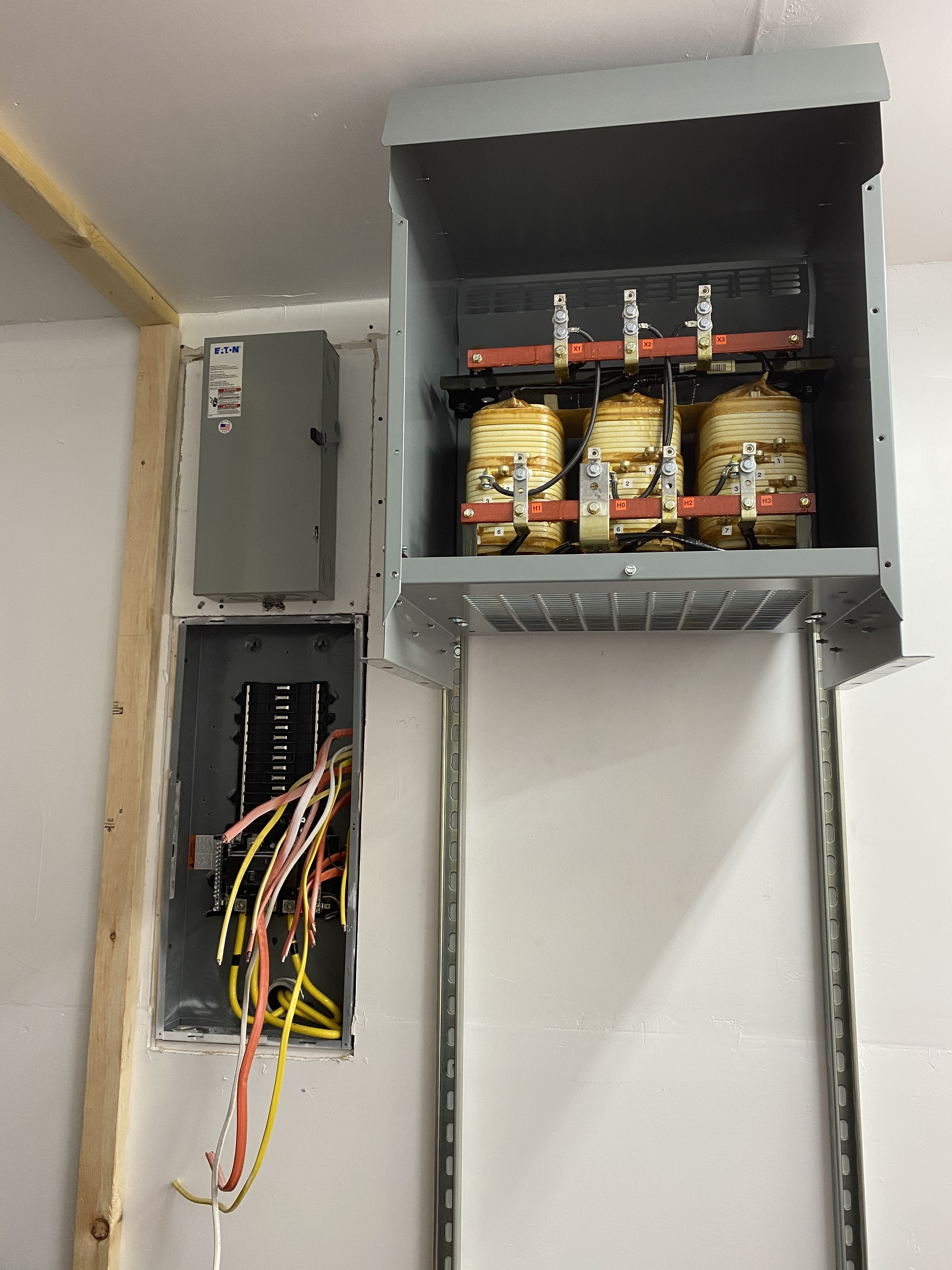

Converted 208 3 PH to 480 3 PH with this Transformer. Disconnect next to it coming from the 208 200 amp panel. Square D 120/240 single phase 200 amp panel on the left. 2/0 wiring being the bitch it is to bend. But I’m almost done. Getting there.

9 Likes
96

Yep, them wall mount transformers are a bitch to lift lol. Gotta love that unistrut

6 Likes
97

Yeah, unistrut helped. Problem 1, they sent us the wrong transformer. Hooked up, was reading 547V. Couldn’t believe it. They sent us one that was putting in too much initial Voltage. Problem 2, now we have to make the drive to get a replacement 480V transformer.

Problem 3, now we have to lift that big bitch down again, and lift the replacement. :man_facepalming:t2: We might just stop being the cheap asses we are and rent an A/C lift. For Christ’s sake, Merry Christmas. Lol

4 Likes
98

If that strut goes all the way to the floor you can try standing it on the strut like raising the side of a barn. Obviously be careful lol

2 Likes
99

Yeah, it’s all the way to the floor. That would be help getting her down. What doesn’t, we ran current through it, so of course, now they want to charge us a 35% restocking fee… North American Phase Converters. That receptionist is a real piece of work BTW. And she WILL call you a liar. I had to cuss that woman out, and she just laughed.

2 Likes
100

That’s some fucking bullshit. THEY sent you the wrong unit and now you’re at fault cause you hooked it up and checked it? BS business practices

5 Likes
