If you need a good SS welder in the sac area I know a guy.
2 Likes
Dead
1 Like

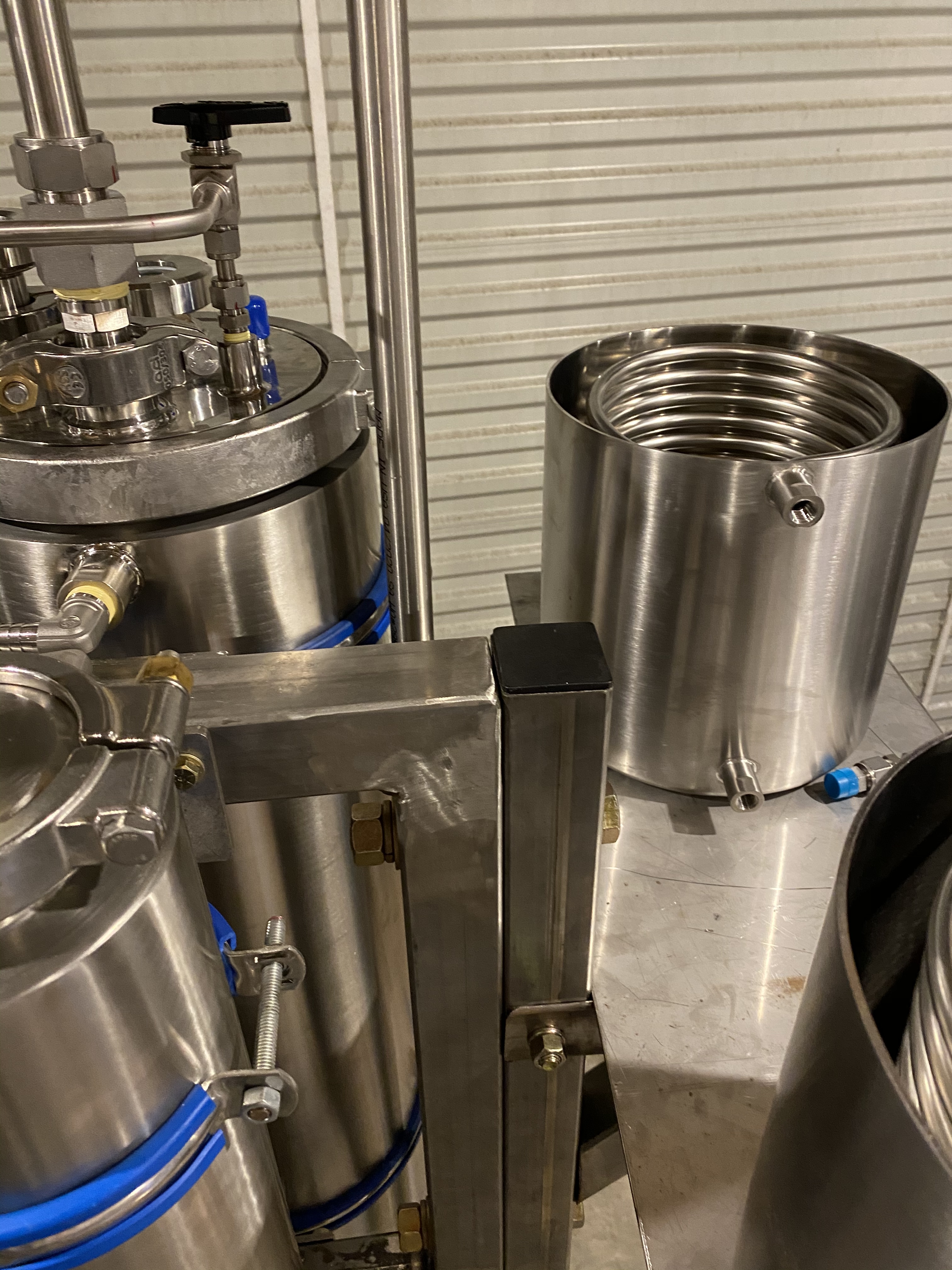

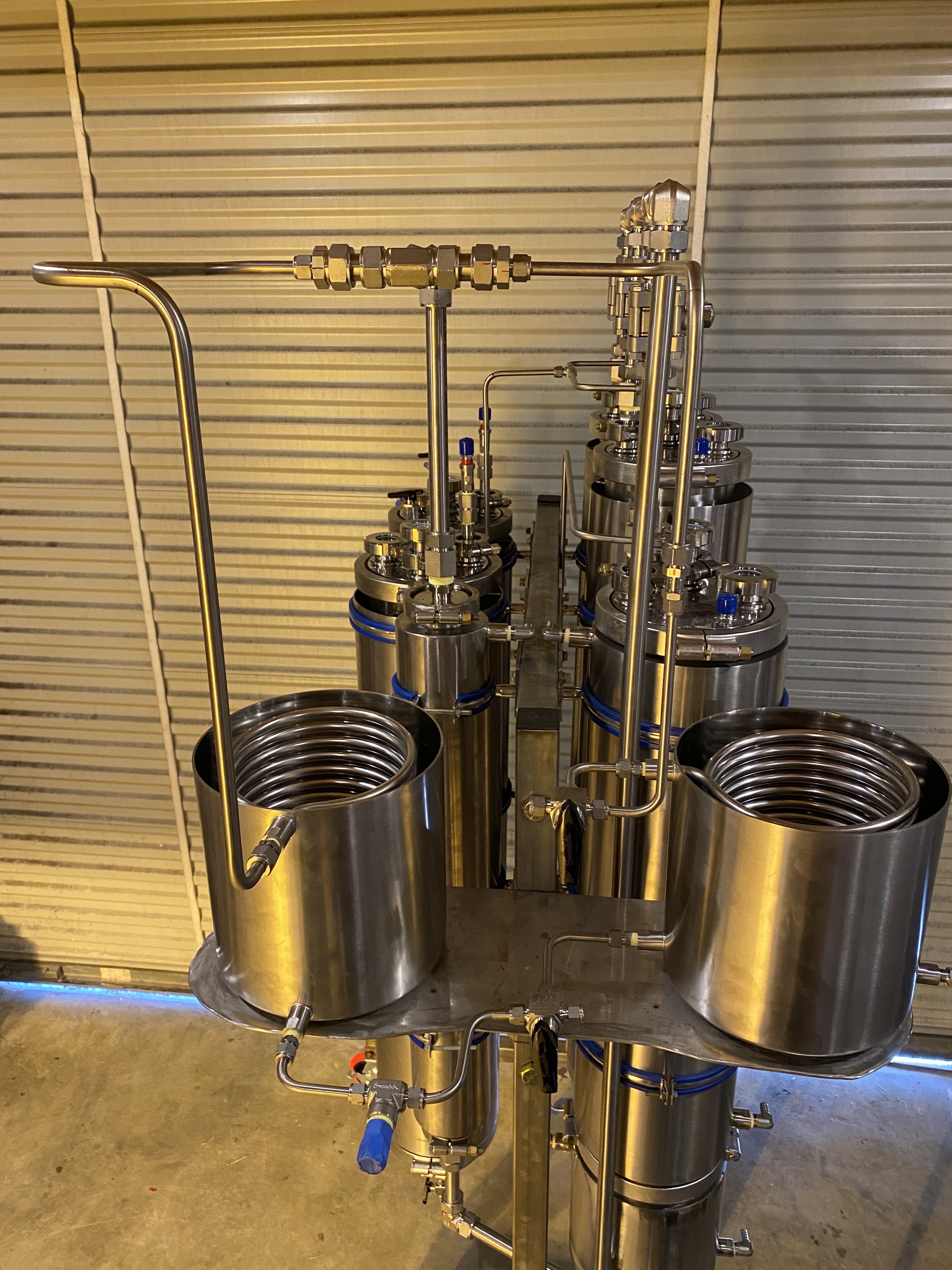

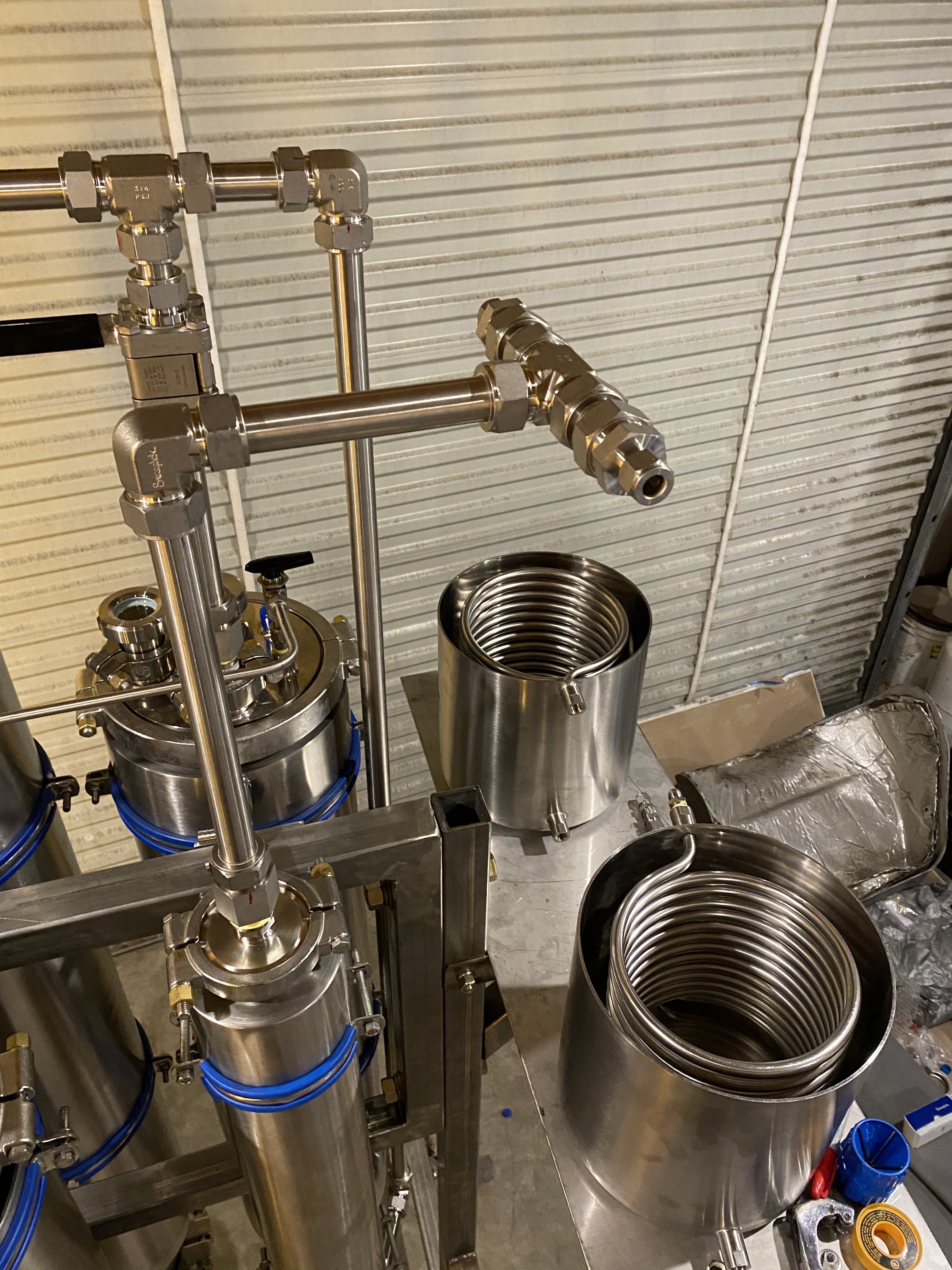

The coils (not the ones in the columns) will be for recovery, and the right side will have 3-way ball valves so I can use that one for injection as well.
3 Likes
As soon as this fab shop gets done with my āchillerā, Iāll post pictures. It wonāt be utilized on this system though, but on another, larger crude system.
But until I get my order back, Iāll explain a little in detailā¦
Itās basically a 1/2ā cooling coil (its 42ā long x 8ā wide) and one outlet goes to the March ethanol pump, which delivers to the process. The other inlet, is hard-lined into a tri-clamp 3ā sight glass, which on top has a 30PSI swagelok PRV and gauge, and then hard lined coming from the process. It fits inside a 12ā x 48ā tri-clamp column. If my paperwork is correct, it should work well.
2 Likes
So itās a coil inside a 12x48 spool, will this be packed with dry ice slurry?
1 Like
Yes, the sight glass will allow you to keep track of any solvent loss. Doing it this way, will make sure no atmospheric water will condense into the pure ethanol reservoir, which will make sure no ice build up leading to imploding tanks.
2 Likes
Iām having a hard time picturing this so Iāll wait till I can see it! Sound be pretty interesting!
2 Likes
The name for this system isā¦ āThe derrickā
The larger system will be called āThe Cokerā
3 Likes

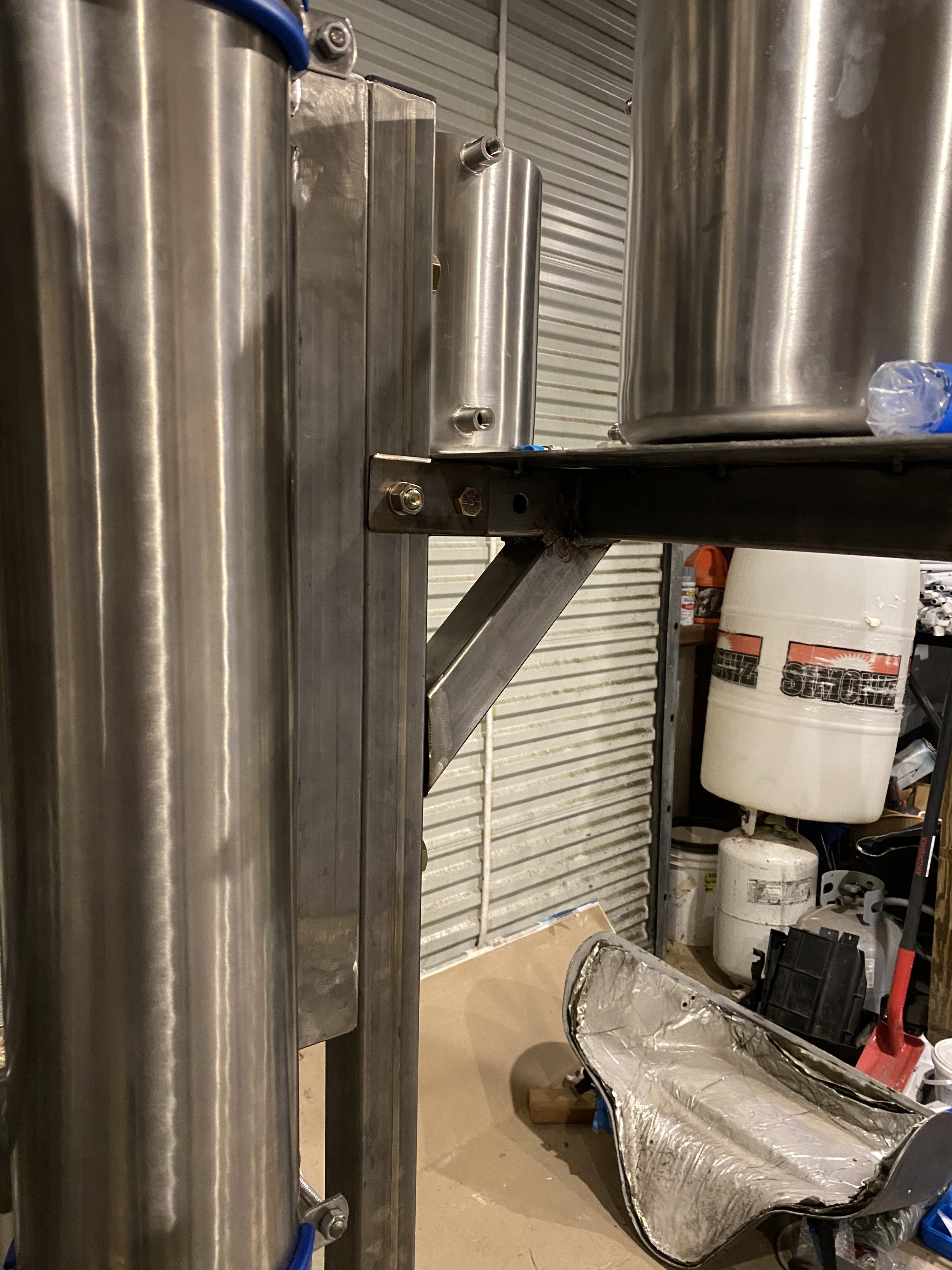

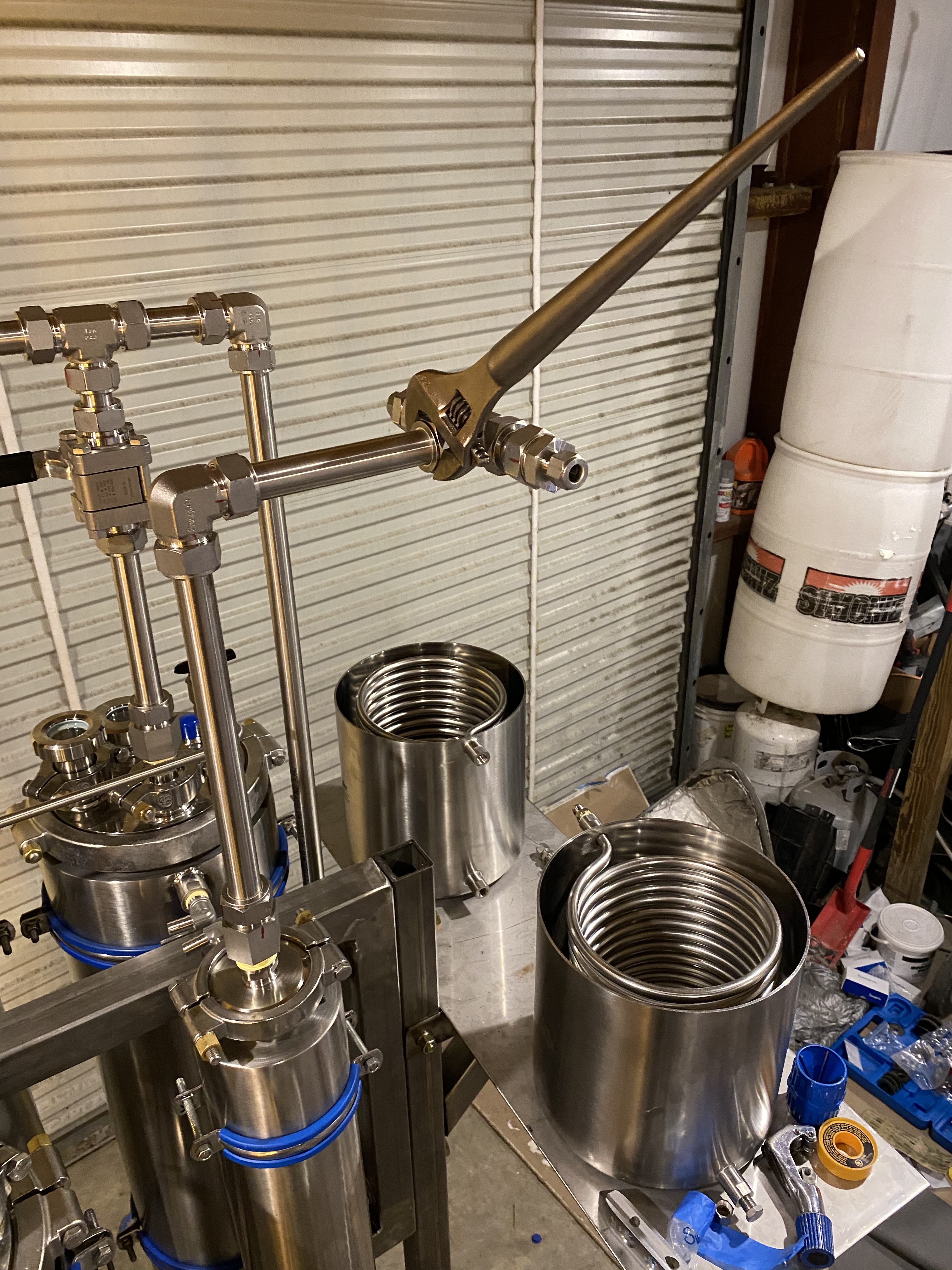

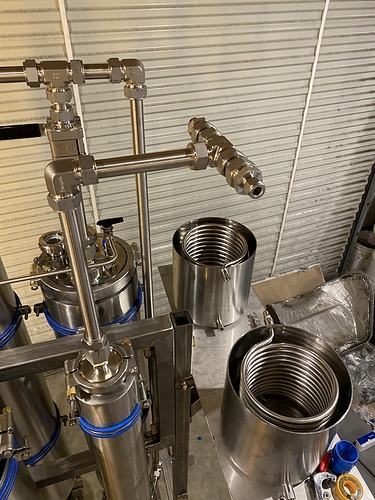

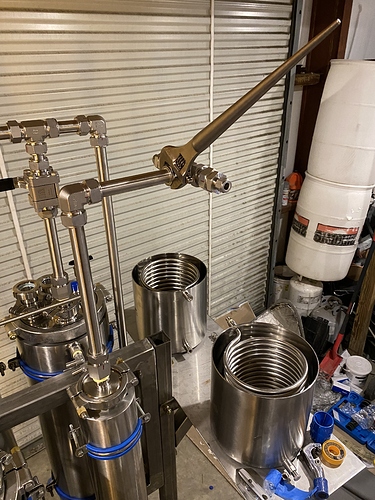

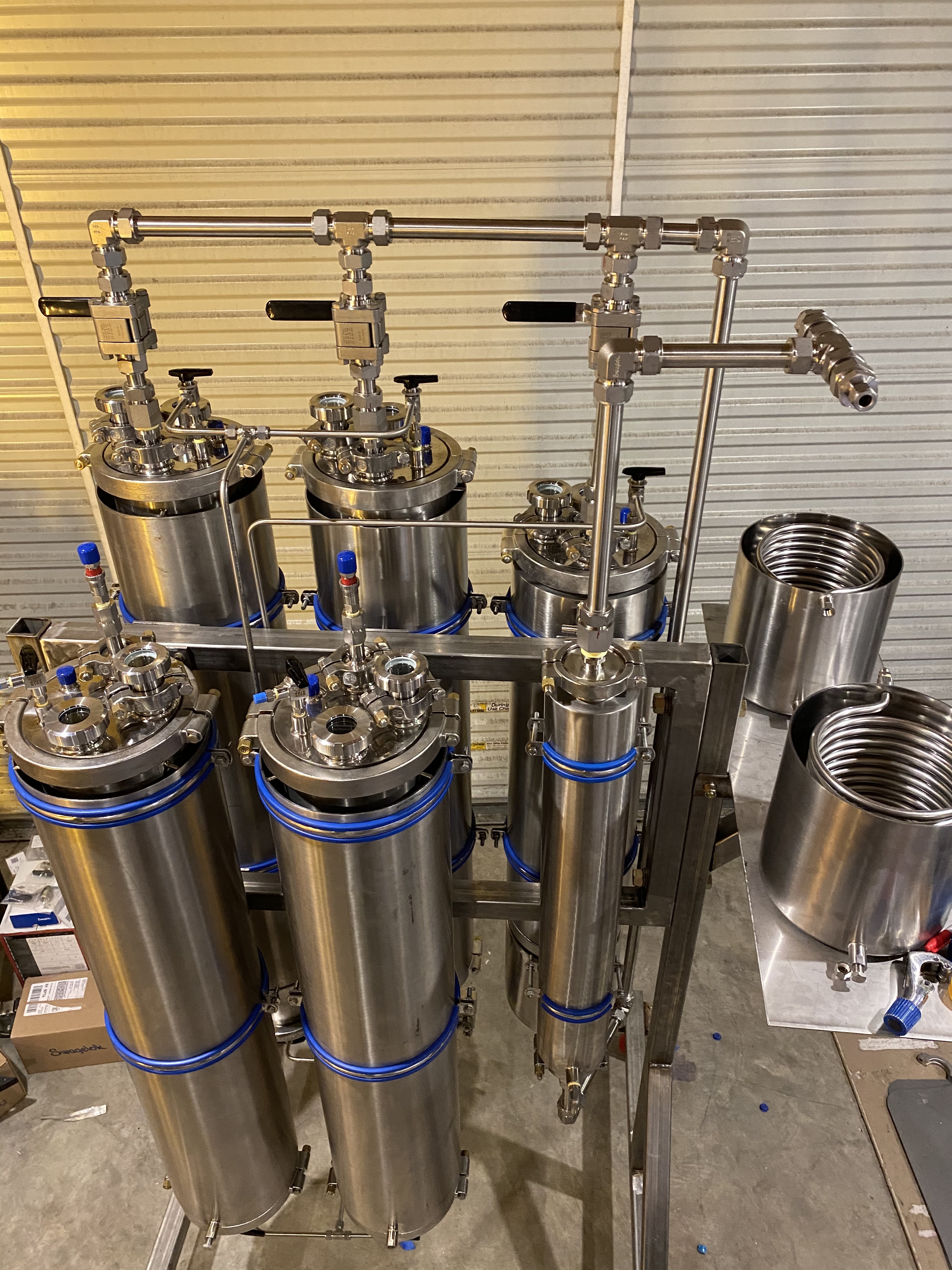

Getting last minute tubing done before the move. Installed 2ā black plastic square tubing end caps for safety. Bolt on heat exchanger set up to get in and out of tight doors. Should be completely done with all tubing tomorrow, and The Derrick will be planted inside Oklahoma to begin Fracking immediately.
22 Likes
Hell yea brother
Looking good! Got me already wanting to switch up some of my stuff now
2 Likes
Fantastic work! You gotta learn to tig weld that tube, I canāt imagine hard piping a 1"+ system any other way lol, those ferrules are huge. Save a shitload of parts cost too
4 Likes
Iām in talks with Mr. @Indofab to help me out with my next system. Weāll seeā¦
7 Likes
Iām really digging your shares man. Looking forward to trying some of your hash.
3 Likes
Thanks bro. For sure. Have some Grape Jelly Donut and a few lbs of Orange Creamsicle sugar trim Iām gonna run for my perso. Iāll let you try some when youāre up. You can come to the lab.
7 Likes
Iāll be hitting the travels this week. May try for Dallas / OK / CO to play catch up on meetings and introductions. Iām running behind on staying on top of leads and need to establish contact with everyone.
Also wanna talk shop with any and all omma license holders to find the right home for the wfe gear (with $ to get operational)
Iām falling behind on contact and need to send some mass messages out. Trying to spread the attention how I can. Itās a juggle with these plates this full. Loving it.
2 Likes
So cleanā¦ Awesome job Homie! Thatās some SAAAWEEEETT shit!!
2 Likes
HAWT.
Fkn character limit
2 Likes
I needed to see some porn today!!!
I canāt wait to see it her up and running.
3 Likes
Much love. Canāt wait to see everyone OKC 3/6
