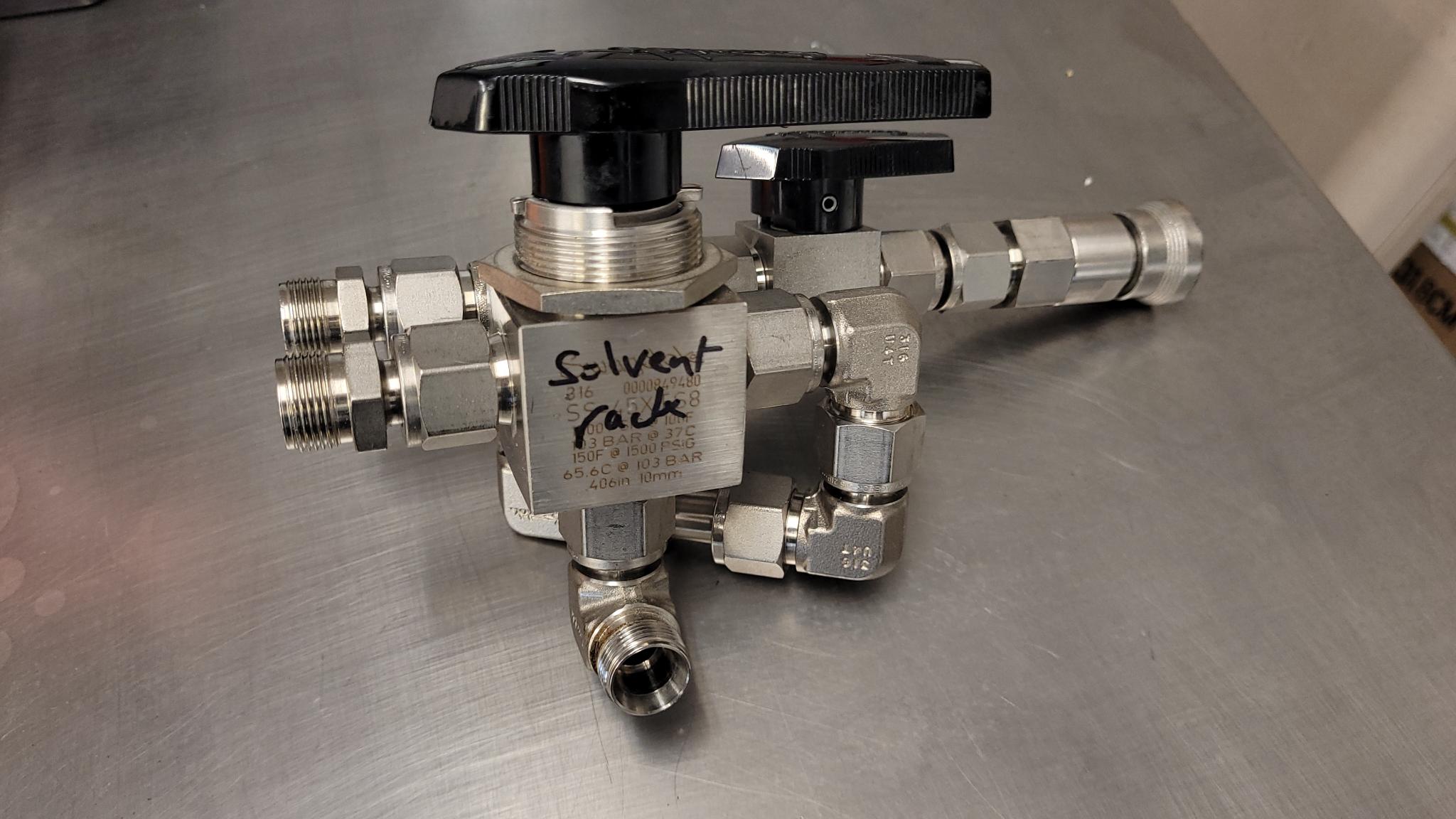

I have a few manifolds used on a bizzy system, was wondering if it’s a common configuration, trying to figure how it functions.
Three way valve, reg 2 way plug valve with quick connect,
2 Likes

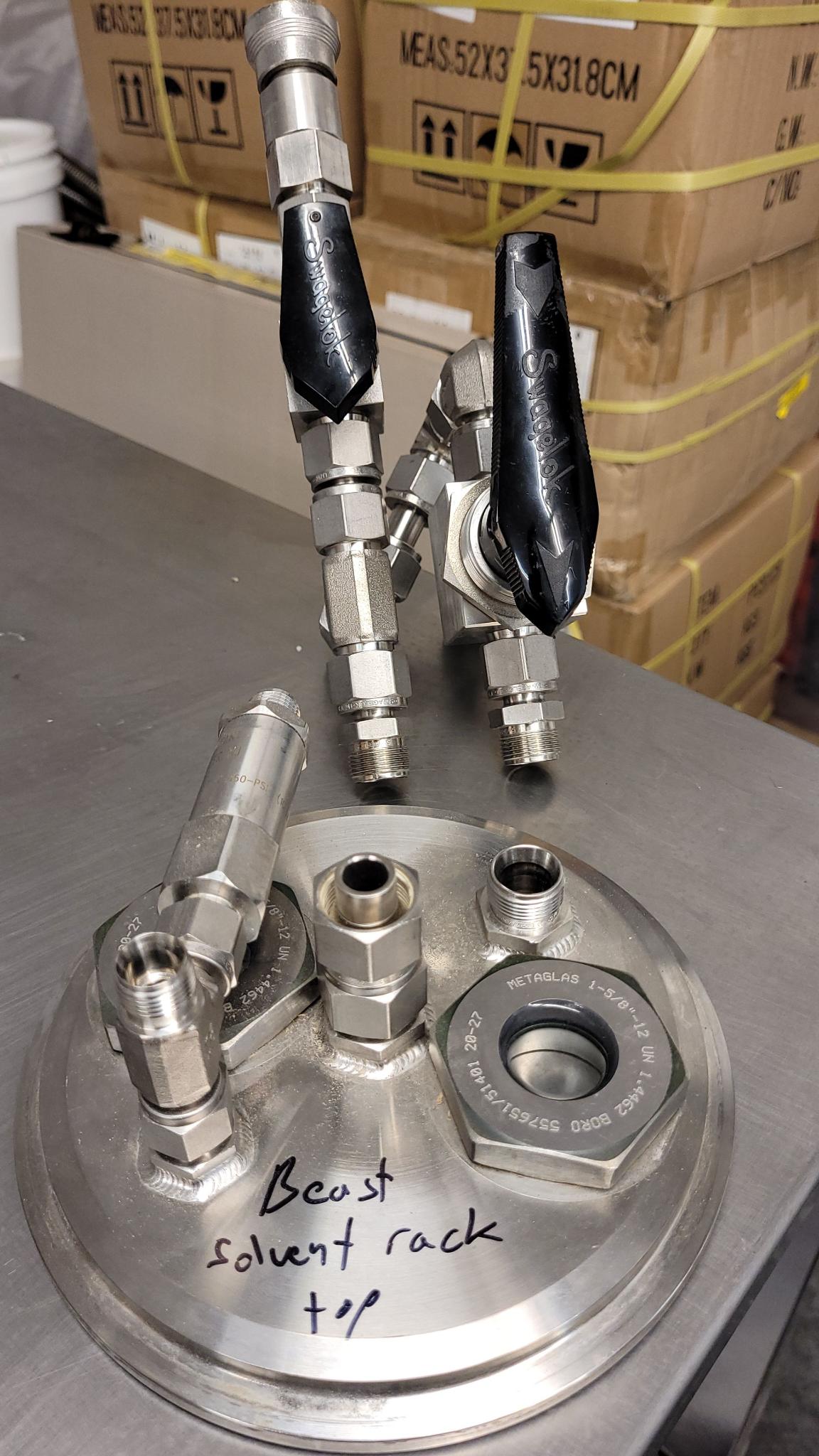

The lid and manifold is for the top of a solvent column. Plug valve with quick connect is for N2/vacuum. 3 way valve pointing down for liquid or up for vapor. Just missing the diptube for liquid.
3 Likes
Took me a second but I get it now, thanks a bunch!
Got 4 of them bad boys and only one lidless tank!
1 Like
Nailed it! Thank you
