Head temp dropped like a rock from 110c to 40c. Still in heads fraction. Mantle temp up to almost 200c. And nothing is coming thru now.
What’s your vacuum at?
2 Likes
Vac level is good never changed. But the temp randomly shot right back up and now I’m back in business. Not sure what that was all about
“Good” isnt a measure of vacuum. What may be “good” to you, is actually not good to others.
6 Likes

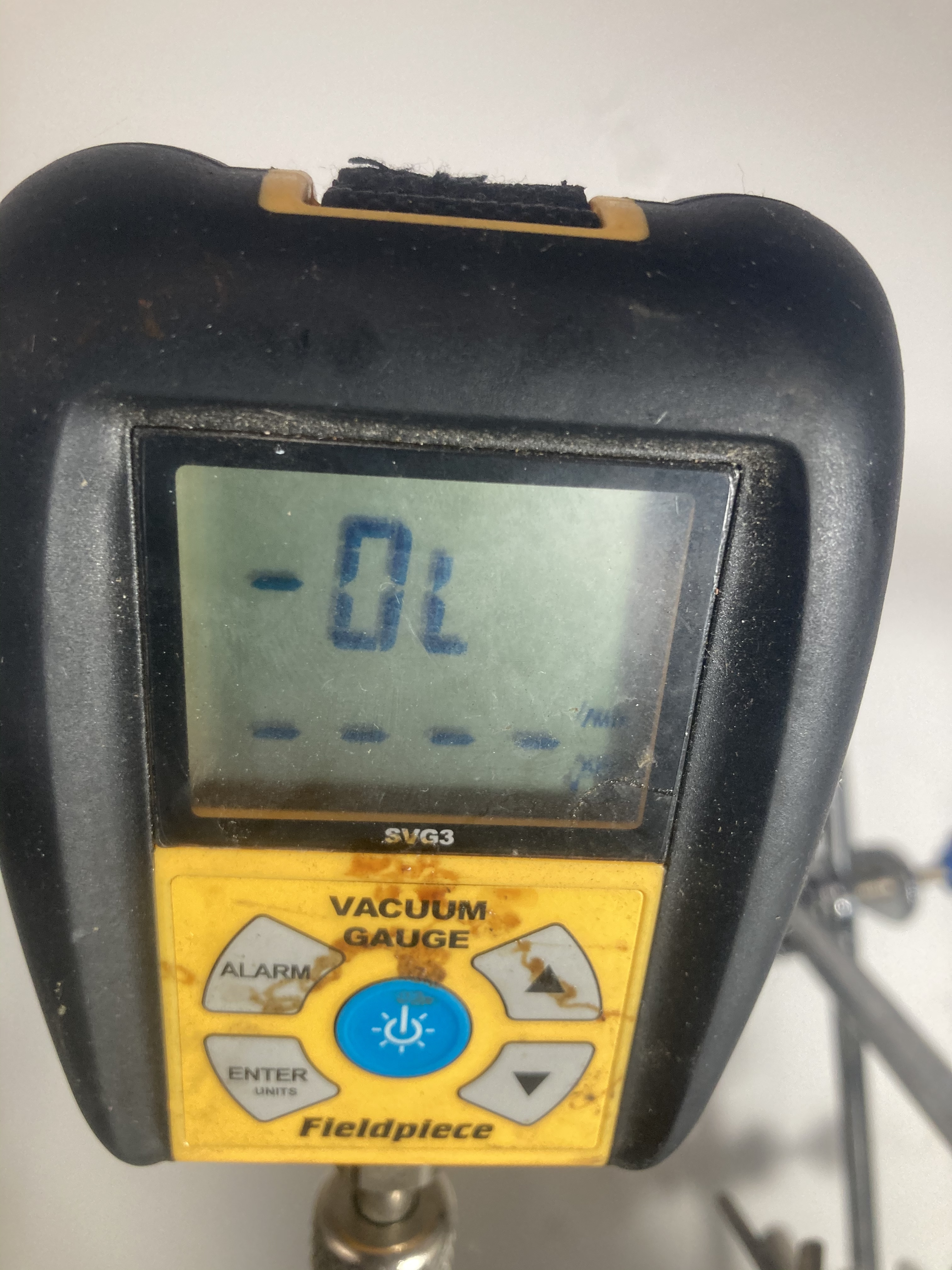

I’m new to this. I don’t think this gauge is in microns but this is as low as I’ve seen it go and it’s been there the whole time. I’m sure you know better than I do.
That says “overload”
3 Likes
I thought that was a zero cause it counts down to that when I start the vacuum. What’s overload mean?
I’d suggest rtfm

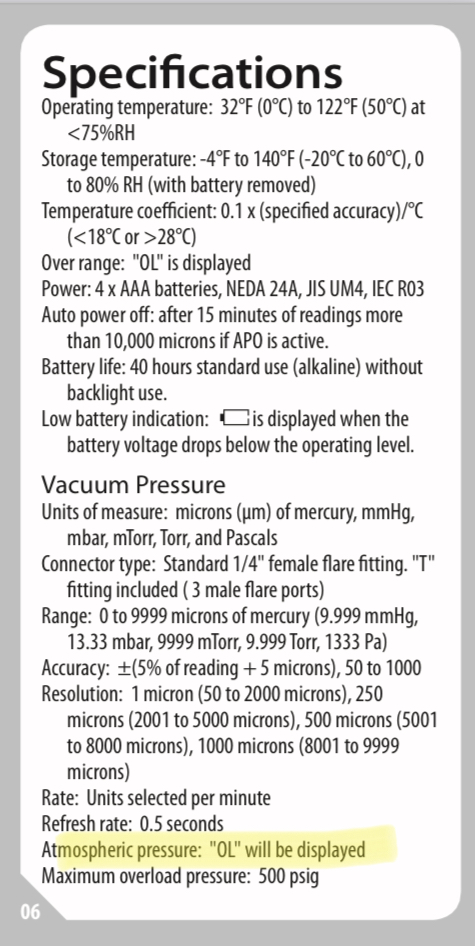

https://www.fieldpiece.com/media/downloads/Opman-SVG3-v26.pdf
In the fine manual…
3 Likes
If you didn’t clog, it sounds like you came to the end of a fraction or the mantle is lying.
In which case @roiplek might have missed…
OL = overlord?!?
5 Likes
could be?
5 Likes
Seems like in a fraction with vac level above 10mmHg is probably the full answer.
2 Likes
Show us how you have your gauge plumbed. I suspect you’ve throttled your vacuum path drastically with it (guessing).
Edit: maybe not. Certainly not a requirement with this gauge.
Depends on the tee used…
2 Likes
Bigger question, you’re several hrs in, and your rig is leaking like a sieve, you might want to consider shutting that shit down for the night before you completely wreck everything in the flask.
If you haven’t already. See: Chromatogram: 3% THC
If you can’t get the job done with mantle temps below 240C, I suggest you stop & regroup.
1 Like
The temp will drop that drastically at the end of a fraction? Honestly asking
How does the thermometer get hot?
What happens when there is no more of the thing that boils at that temp left to boil?
3 Likes

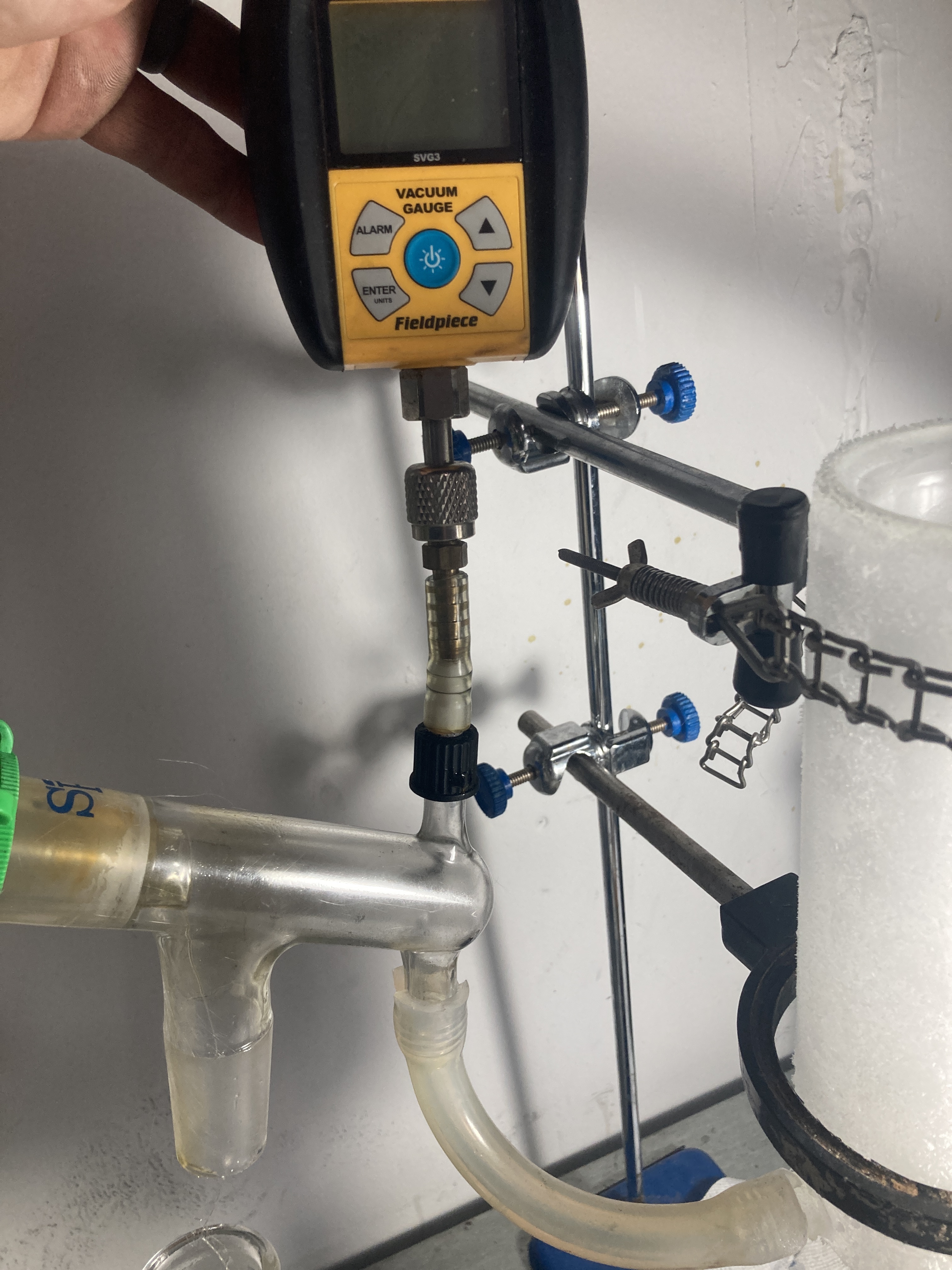

plumbed directly into the cow. I figured that’s what the port was for since it fit there so well. It’s directly over the line to the cold trap. Will that affect the reading?
That makes sense. This info is all very helpful as this was my first run ever
1 Like
