Where to buy filter plates for a standard tri-clamp connection?

the TC clamped power packer is amazing looking but 12k to pack and unpack a column is something very large scale can even contemplate unfortunately.

The first thing i thought was to get a $50 long ram jack and with a little welding /cutting/bolting you could use force to pack but it wouldn’t use hydraulic force to retract the ram and then there is the hydraulic fluid contamination issue.

4 Likes

How hard do u pack material columns without losing anything…is live the same?

I usually barely pack live and give dry pretty good body weight…

My favorite thing to pack w my $2 pack rod I mocked off bvv $100 packing rod

SS washer the size ur column…braized on threaded rod from the isle next to it at most hardware stores
:blush:

3 Likes

The packing rod u describe here i call a trick of the trade Nice :grinning:

4 Likes

I just ordered one of these:

with these filters

https://www.amazon.com/gp/product/B00394F982/ref=oh_aui_detailpage_o02_s01?ie=UTF8&psc=1

the quality is good. i havent ran with it yet but after seeing it i realized i want a second one. My plan is to place one on the bottom of my material column as a end cap essentially and then take the second one, connect it on my recovery tank and Buchner funnel style run some celite 545 through it and make a puck. I figure the first one will stop 99% of stuff and the second one with the Celite 545 will catch any small stuff and because it has an 11 micron pre-filter via the filter plate stacked above it i should be able to keep the same celite 545 puck for many runs is my hope.

1 Like

you might wanna return that filter plate and find one with a clip or buy some filter plate rings to keep your filters from lifting.

3 Likes

I wont need a clip if i’m vac pulling a celite puck from a slurry. The puck will hold everything in place just like it does in the Buchner funnel.

The slurry loading might not work, try drypacking and vibrating like @Beaker does for his dcvc runs. closed loop systems are hard on a filter bed, especially through pressure swings. make sure to check your product for celite, severe lung damage from inhalation.

7 Likes

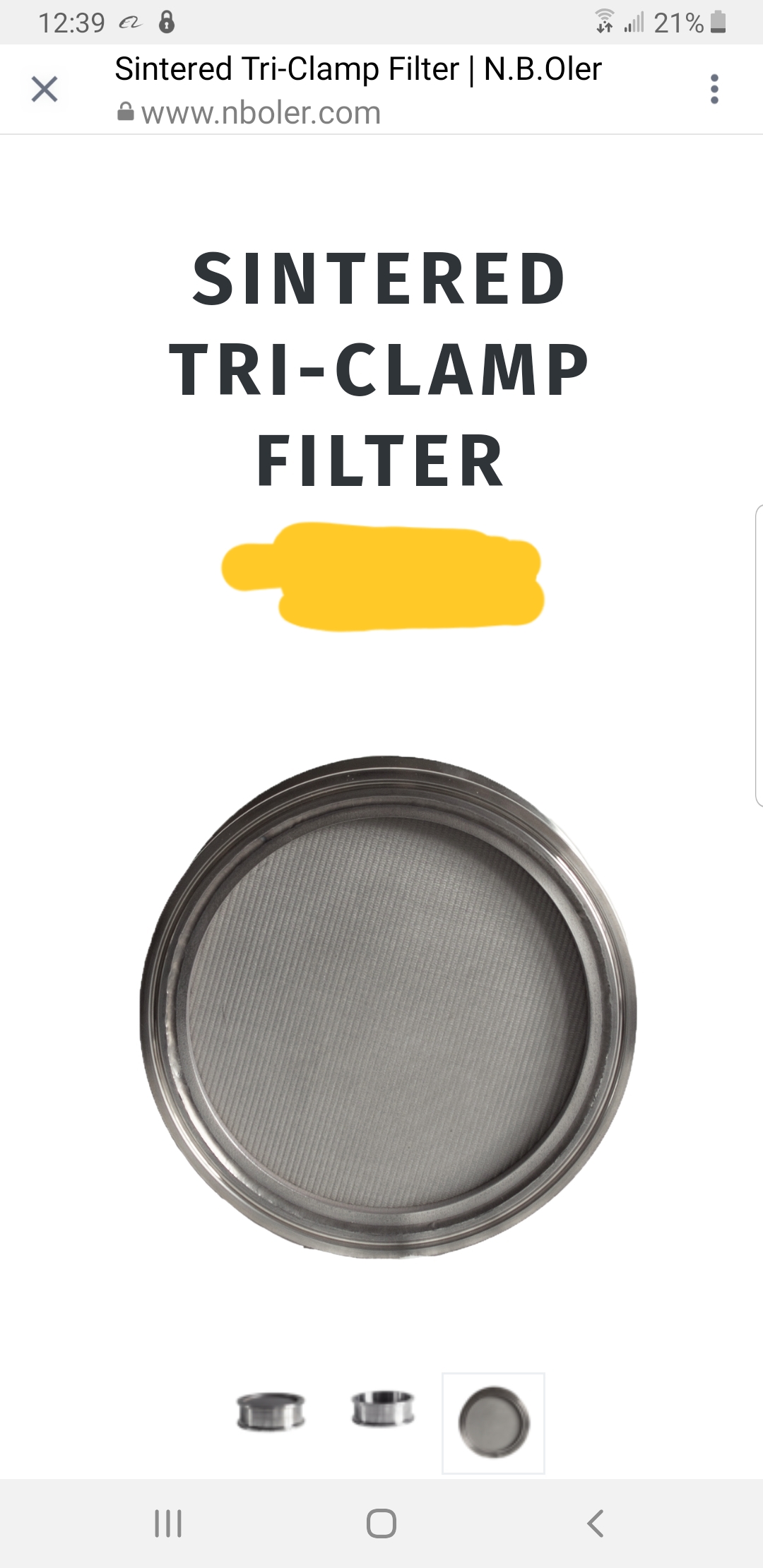

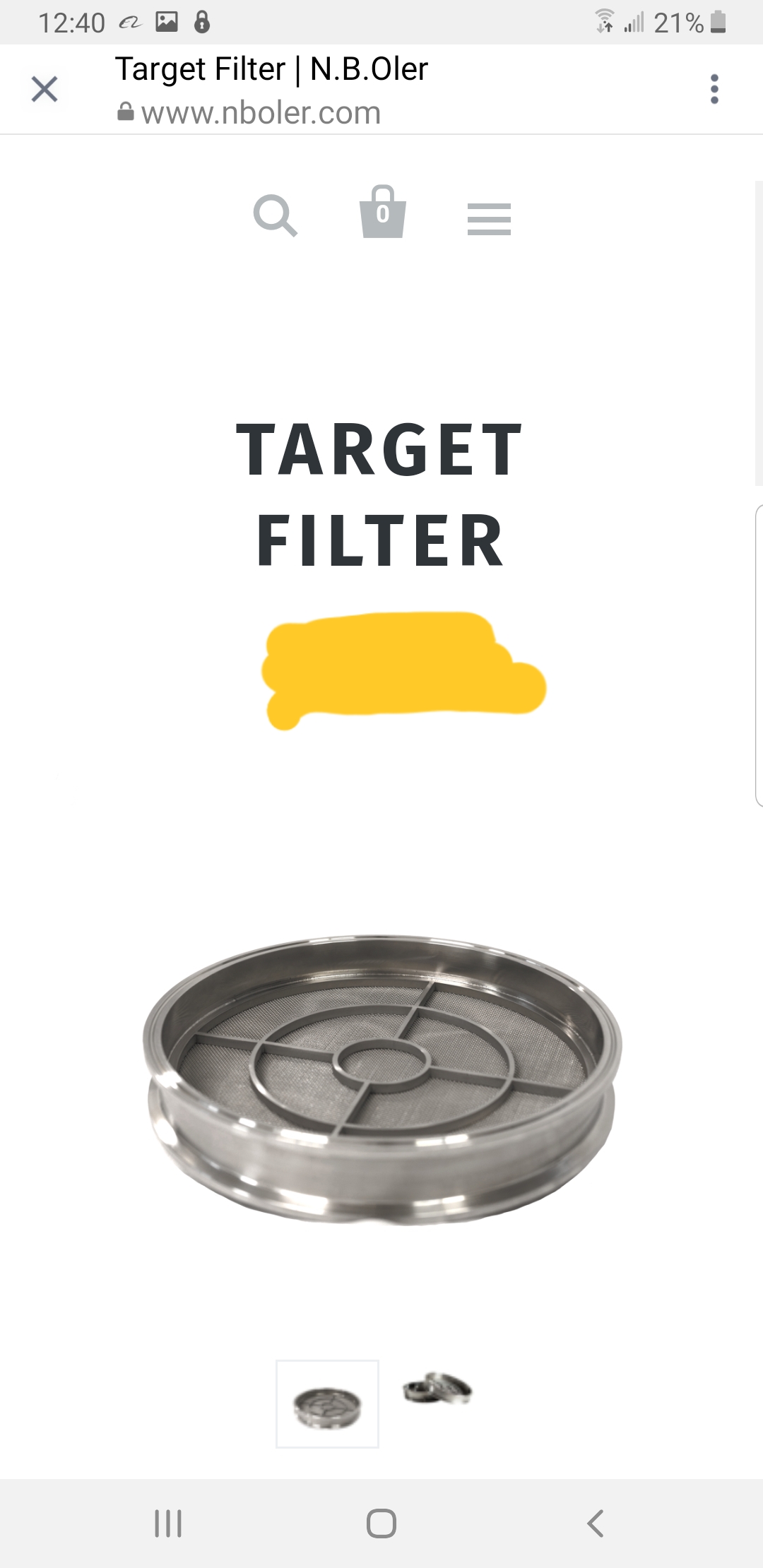

Knew someone else here would be building their own pressure filter. I’m thinking a 24” long 6” diameter spool, a 6” to 1.5” cap, a 10 micron stainless filter plate from N.B. Oler, a 6”-1.5” bowl reducer, and a 1.5” to 1/2” barbed elbow to attach tubing to collection vessel. All to be pushed at ~ 50psi. Anyone see issues with this? The filtration media would just be bentonite clay with carbon on top. Could that just be packed on top of the stainless filter, or would it have to be sandwiched between another filter?

1 Like

A Company called Mott makes sintered filtration discs that come in 316 SS and a variety of other alloys. They make then in sizes down to 0.2 micron and I have used then inline, sandwiched between I-line clamp fittings. The Company offers a tremendous amount of sintered filtration products and the beauty is they can be cleaned and reused.

6 Likes

Do you have a link to their site or IG?

1 Like
5 Likes

I am looking for something like this but in 3 inch can anyone help?

1 Like

My favorite part is they added the words “crc Tek” to the page that’s awesome!

3 Likes

Not many are going to be making them that small. Get ahold of @Letyourmindgrow or just email em at Sales@indofabsolutions.com and they can get you one, if that’s what you are looking for.

2 Likes

Man I’d been looking for that product for a long time. Glad someone made one finally.

1 Like

Yup. we have a high demand for just the filters and have decided to sell just the filters by themselves without needing to purchase the C.R.C. - Currently we are working on the numbers to be able to give quotes out and be able to process invoices. please shoot us an email at Sales@IndoFabSolutions.com

thanks @Dred_pirate for the tag

Toby Byers
Indo Fab Solutions
Sales@IndoFabSolutions.com
TobyByers@IndoFabSolutions.com

3 Likes

Bizzybee sells single and double sided filter spools with reusable steel filters. We have 80,40,20,10, or 5 micron steel filters.

4 Likes

@Soxhlet
If celite does make it in final product, what is best way to filter it out? 2 micron paper filter?

Actually Id say make a filter cake in the ol’ buchner with celite 545. Fight fire with fire?
