100,000 markdown!!

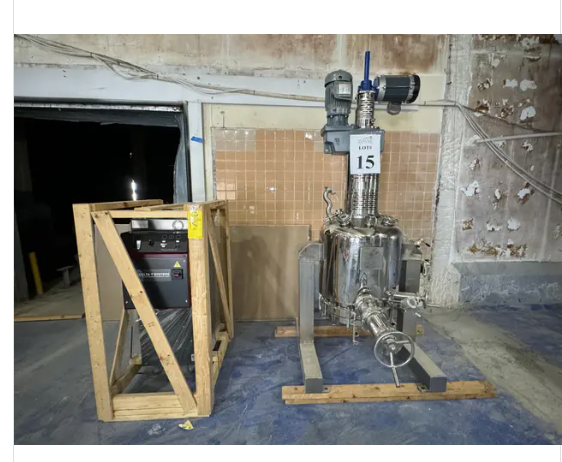

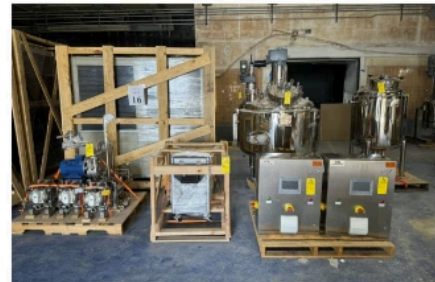

Item Model/Manufacturer: Cederstone CS20225 600L Crystallization Reactor, CS20227 300L distillate Heating Vessel, Pro-FLO-P2 02-12553 3 WIlden Pumps,Delta T System ESW-18D 18kw water temp control unit, J & M Fluidics 8HP Low Temp Chiller, CS20222, Delta T-1221P
Description:
Price/MSRP: $200000 OBO
Current location of item: Miami FL
Estimated lead time: 14 Days
Fulfillment: Direct from seller
This a full set unused 2 of each if the items listed.
-
- Capacity: 600 liters per reactor
- Material: 316L sanitary stainless steel (wetted parts), 304 stainless steel (exterior)
- ASME Compliance: Inspected, certified, and U-Stamped per ASME Boiler & Pressure Vessel Code
- Pressure Rating: +60 PSI, -15 PSI (full vacuum)
- Temperature Range: -20°F to 325°F
- Jacket Design: Full jacket for cooling/heating, withstands thermal fatigue
- Finish: Interior #6 (0.4 μm Ra), exterior #4 (0.6 μm Ra) sanitary finish
- Agitator: Anchor-style impeller, 3 HP UL/CE-certified C1D1 explosion-proof motor (35 RPM)
- Seals: Viton (FKM) gaskets/seals
- Features:
- Sanitary mechanical seal on agitation shaft
- CIP (Clean-In-Place) sprayball
- Interior passivation for CBD distillate/pentane resistance
- Mobility: 4 caster wheels, 4 horizontal bars for forklift, 2 lifting lugs
- Dimensions: 42” OD x 91” H (approx.)
- Ideal For: High-volume CBD crystallization
-
- Specifications:
- Capacity: 300 liters
- Material: 304 sanitary stainless steel
- Pressure Rating: Non-ASME, 15 PSI (atmospheric)
- Finish: Mirror-finish interior
- Jacket: Hot water jacketed for heating
- Ideal For: Pre-heating distillate for downstream processing.
-
- pecifications:
- Capacity: 100 liters
- Material: 316L stainless steel (wetted parts), 304 stainless steel (non-wetted)
- ASME Compliance: U-Stamped, designed to ASME Section VIII, Div 1
- Pressure Rating: 30 PSI, -15 PSI (full vacuum)
- Filtration Area: 0.28 m² (customizable)
- Filter Pore Size: 1–200 μm (customizable)
- Features:
- Spray assemblies for filter cake washing, re-slurrying, and CIP
- CGMP/CIP-compliant, aseptic/sterile design
- 1% achievable final cake moisture content
- Hydraulic station for up/down movement
- NEMA 4X controls (safe room only), C1D1 remote control tablet
- Mobility: Non-scuffing caster wheels
- Dimensions: 5’ OD x 11’ H (approx.)
- Ideal For: Ultra-high purity filtration, pharmaceutical-grade CBD processing.
-
- Air-cooled, single circuit, 480V or 208–230V 3-phase
- Dimensions: 75” x 34” x 75”, 1,200 lbs (shipping), 1,500 lbs (operating)
- Glycol connection: 1.5”, ETL-listed to UL1995
-
- 12 KW, 6-gallon reservoir, 1.5 HP pump (18 GPM at 50 PSI), 460V 3-phase
- Recommended fluid: Paratherm NF (100°F–650°F)
