So I have to run these first 5k lbs before they’ll let me build the BDEP (Butane Deep Expansion Project) I have drawn out.

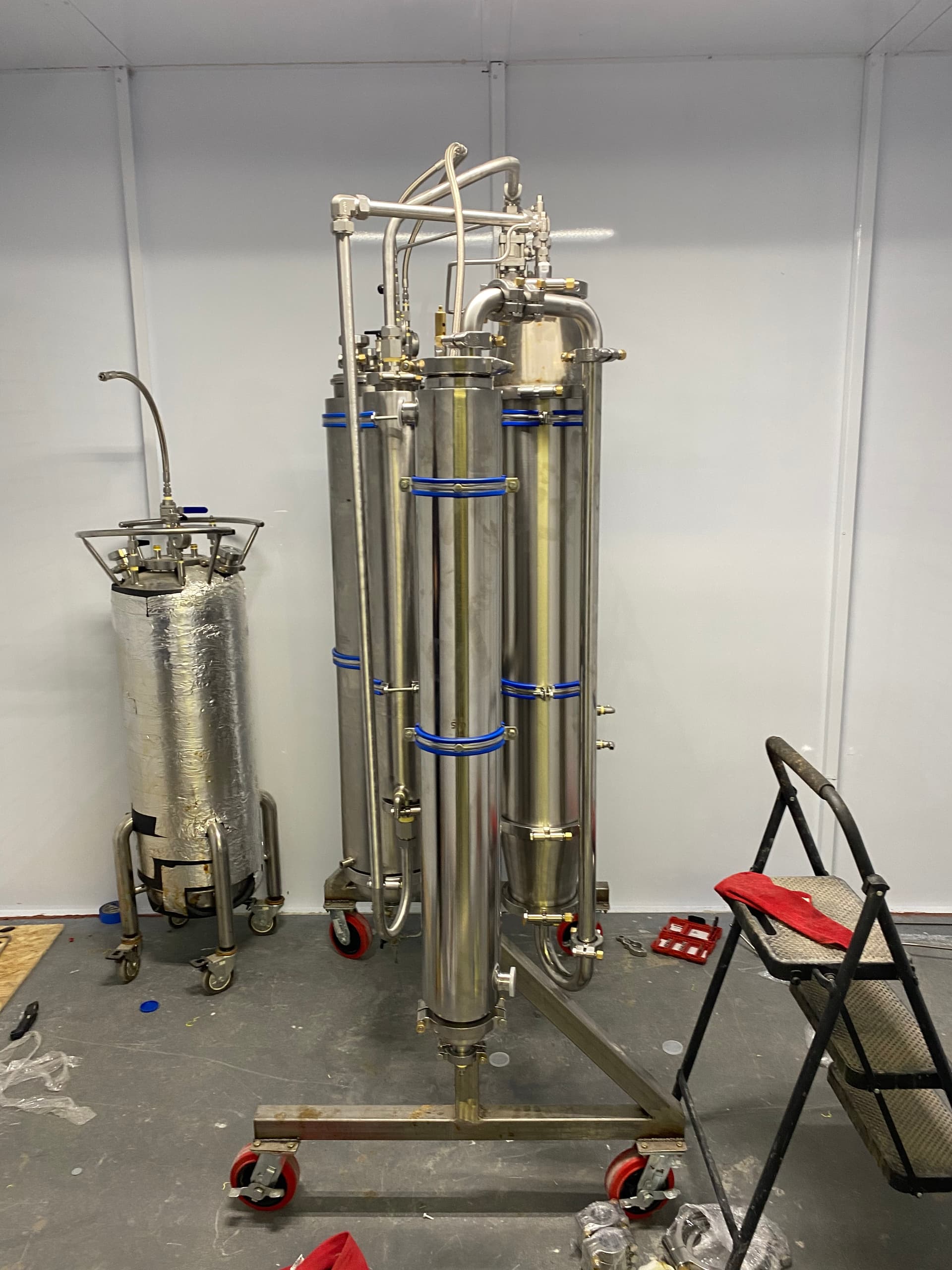

But I will say, this will be my showroom model and it’s perfectly positioned and fitted for a 10 x 10’ c1d1 room. (It will require the whole room to properly channel all the lines and allow spacing for foot traffic).
As I go along, I will detail this project with pics and videos in case someone was wanting to build one as well. Just be sure to rent the Swagelok Tabletop Tube bender for the month. But let’s crush it together!
17 Likes

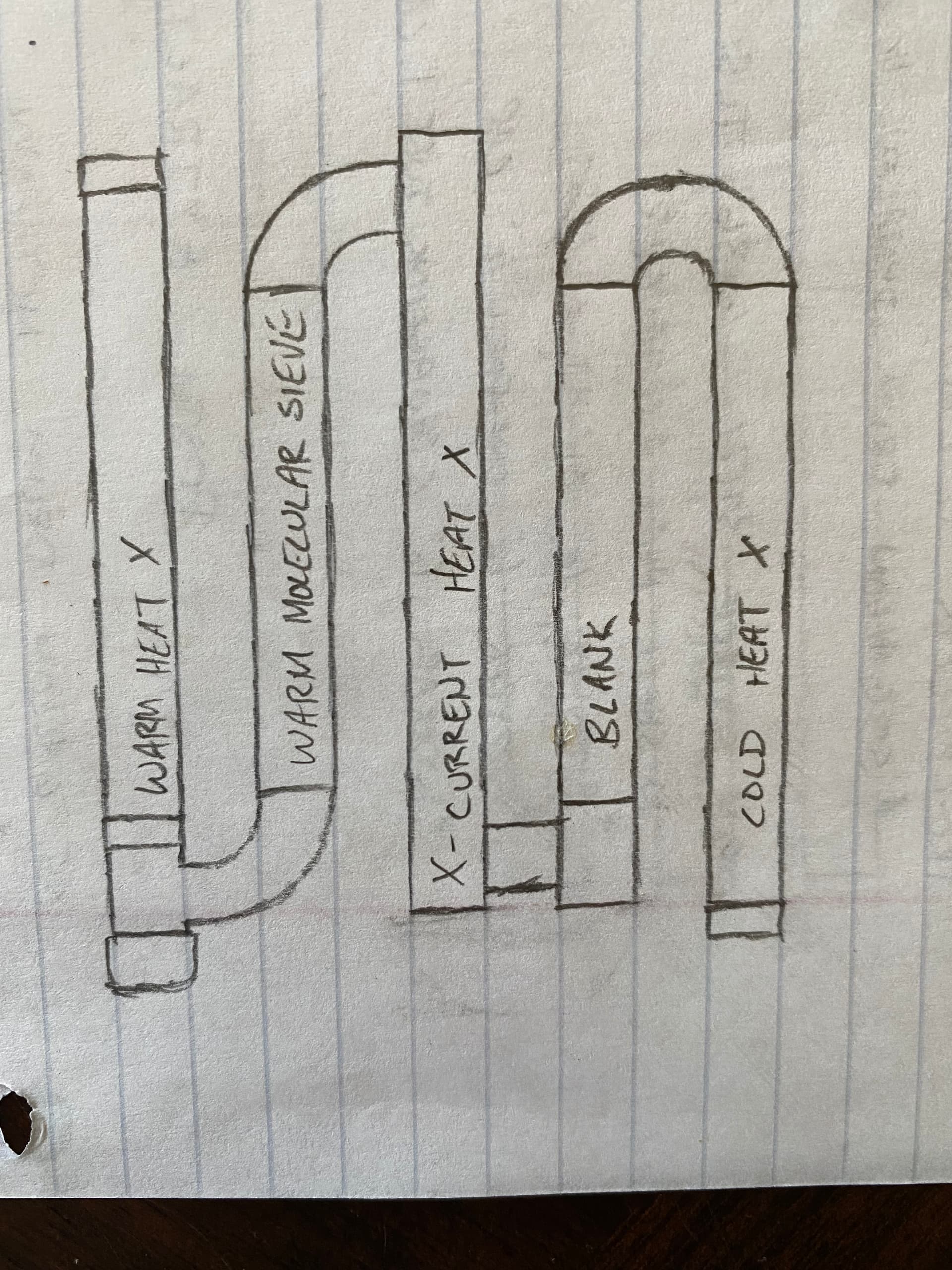

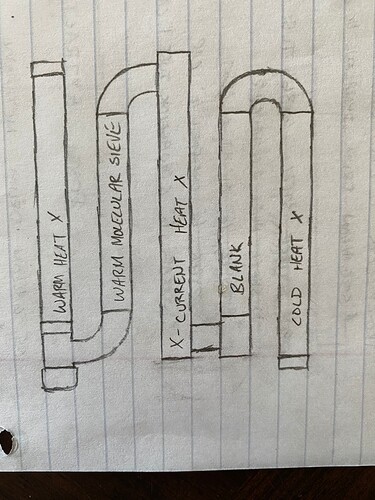

Rough sketch-up of my recovery side
5 Likes
the takeoff to and the warm molsieve will cause carryover
1 Like
What’s takeoff and what would carryover? The solvent?
1 Like
The tee and elbow to the path would be the takeoff
1 Like
So maybe change the mol sieve to the blank, u bend to mol sieve, u bend to the cross current heat X, and finally, down the cold heat X
1 Like
Injection going through cross current heat X would be 3/4” before it hits top sprayer for warm heat X.
1 Like
There are a whole series of equations that deal with the thermodynamics of falling film evaporation.
https://royalsocietypublishing.org/doi/10.1098/rsos.190135
4 Likes
I’ll be running a 48kw heater and a 20hp prochiller…
2 Likes
Thanks bro. Just doing minor upgrades before we start.
2 Likes
If you have time when you and DA come out to OK, my new lab is in Guthrie. More than welcome to come by and see it run, and tour the 85,000sqft grow facility next door.
7 Likes

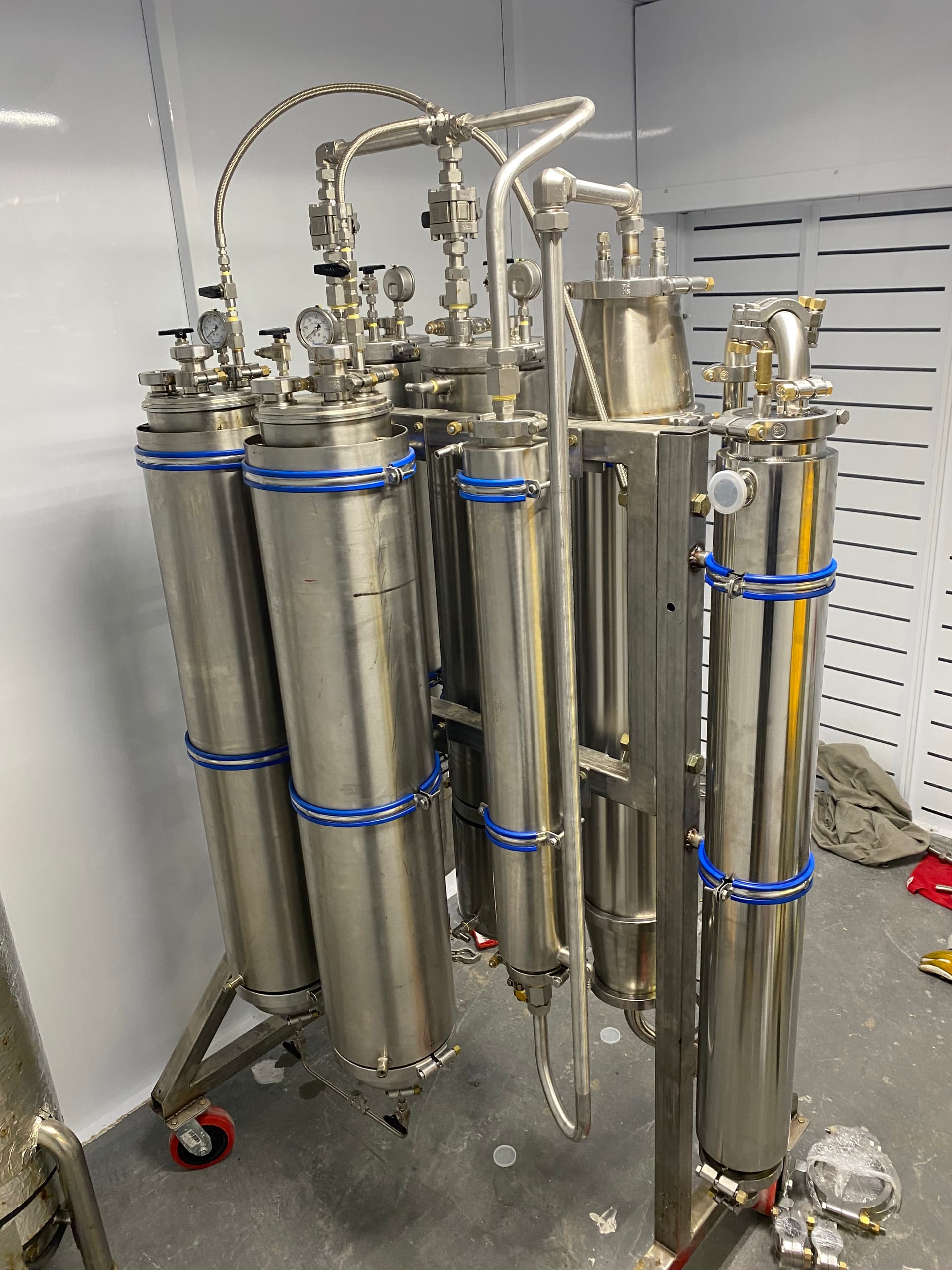

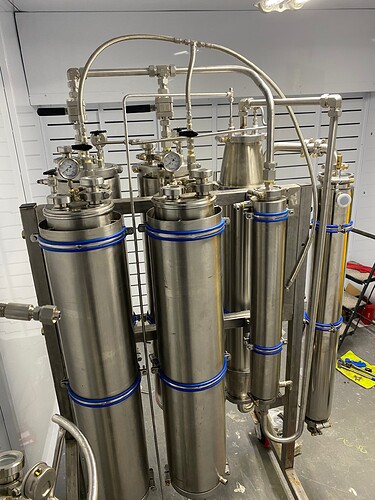

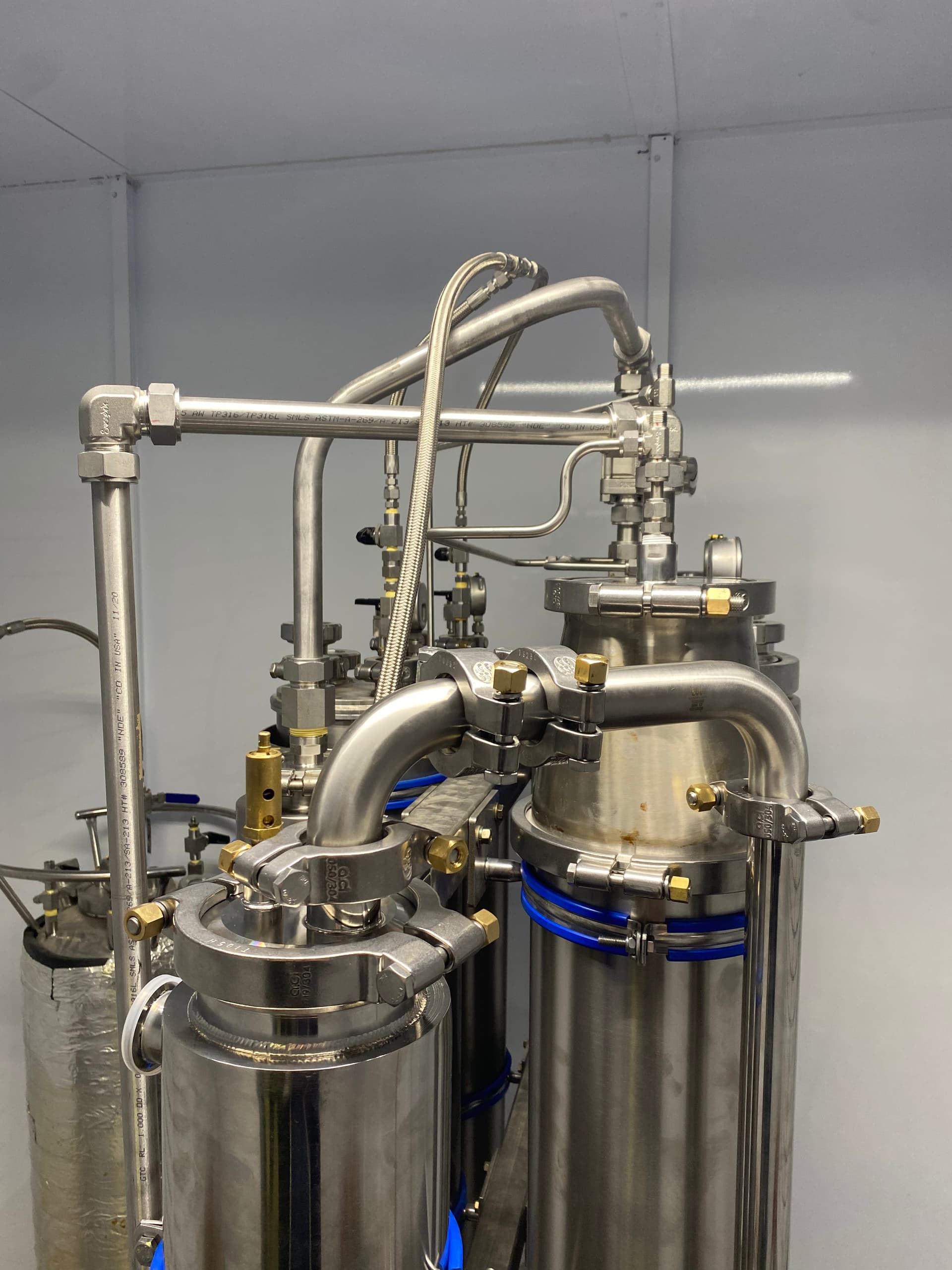

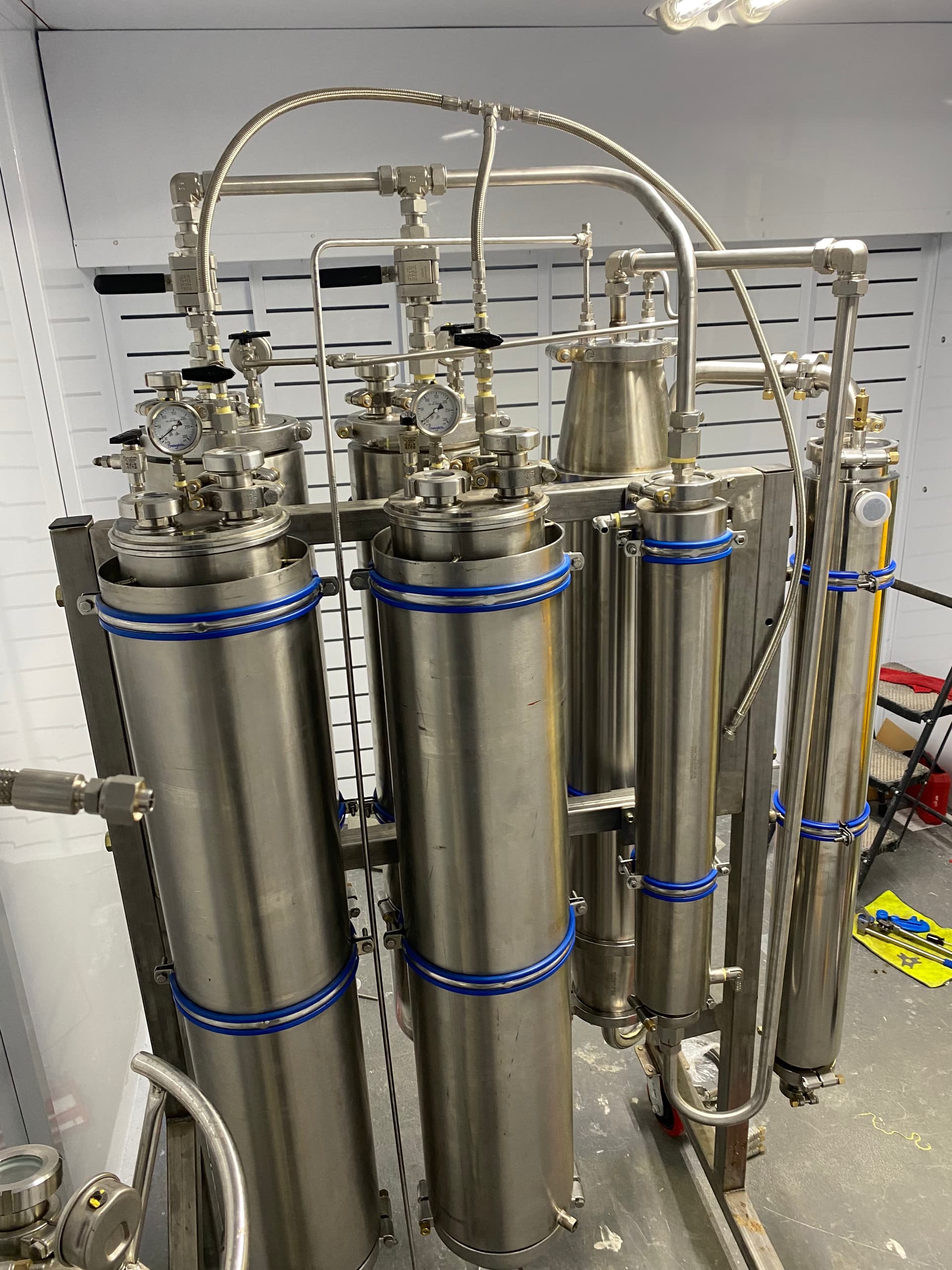

Side shot of the plumbing coming from the cross flow heat exchanger to the tube n shell.
21 Likes
Its been a whole fucking year since I read this.
And it was great to read it again.
5 Likes
Fuck Yeah Bro! I’ve been following on IG, and I love all of your builds!
2 Likes

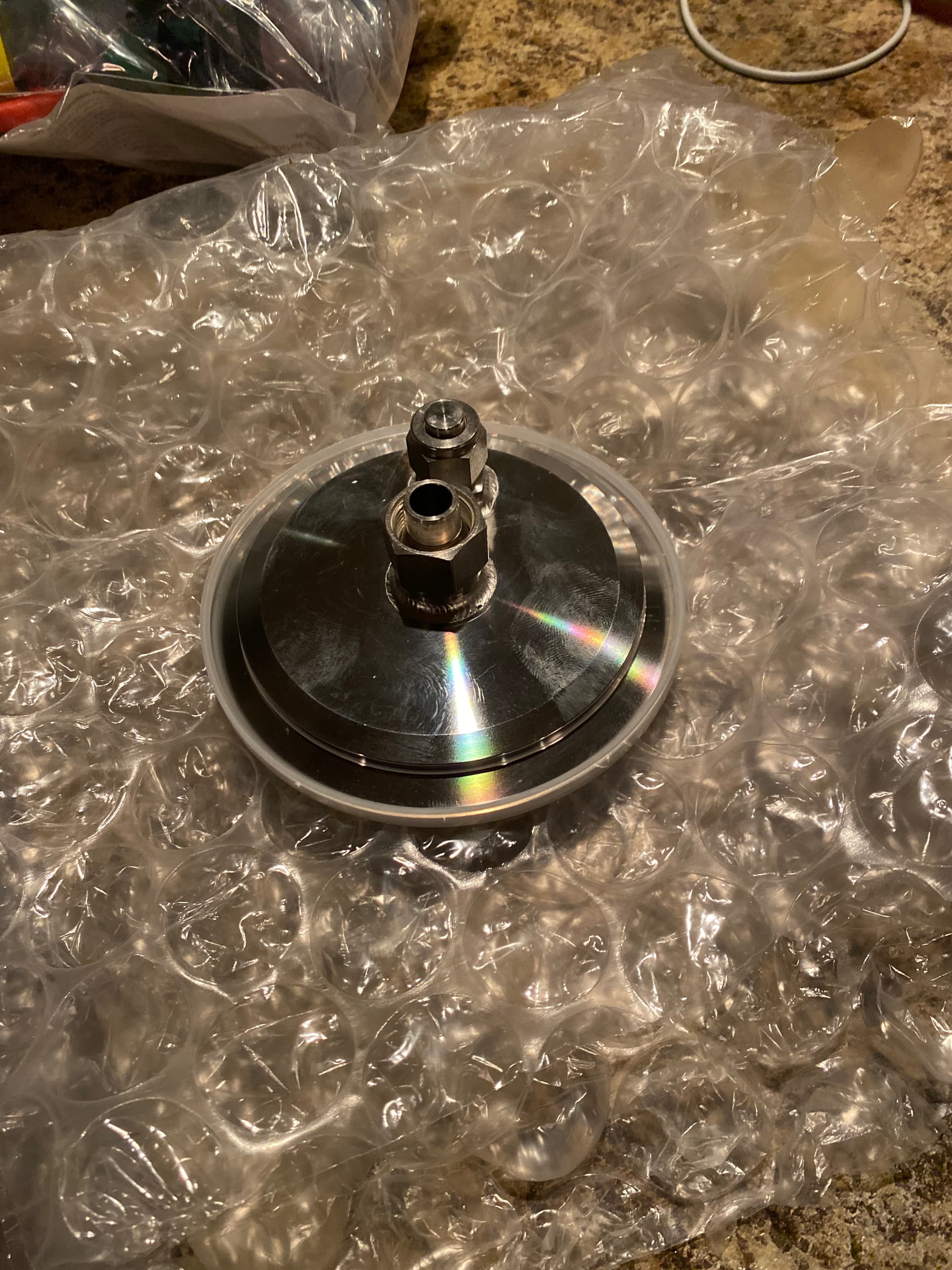

Bizzy coming clutch on the lids, again.
