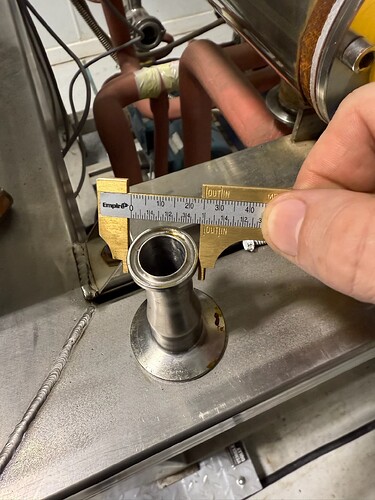

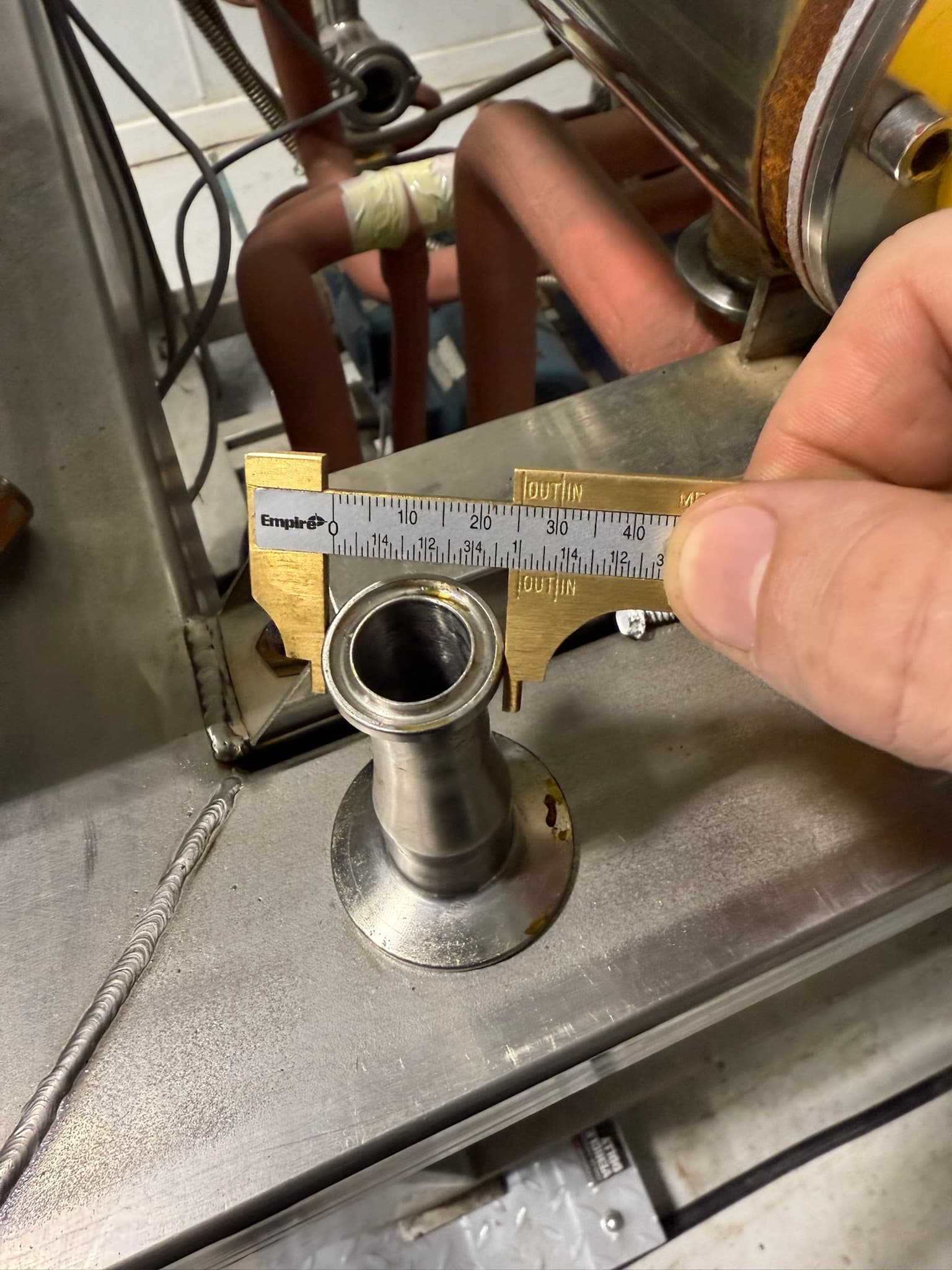

Found this fitting today. I can’t quite identify it. It’s like 1 inch sanitary but the flange isn’t quite that.
I’m thinking maybe it’s 3/4 tri clamp, if anyone can confirm.
3 Likes
If it were 1 inch sanitary, the flange would actually be twice the size.

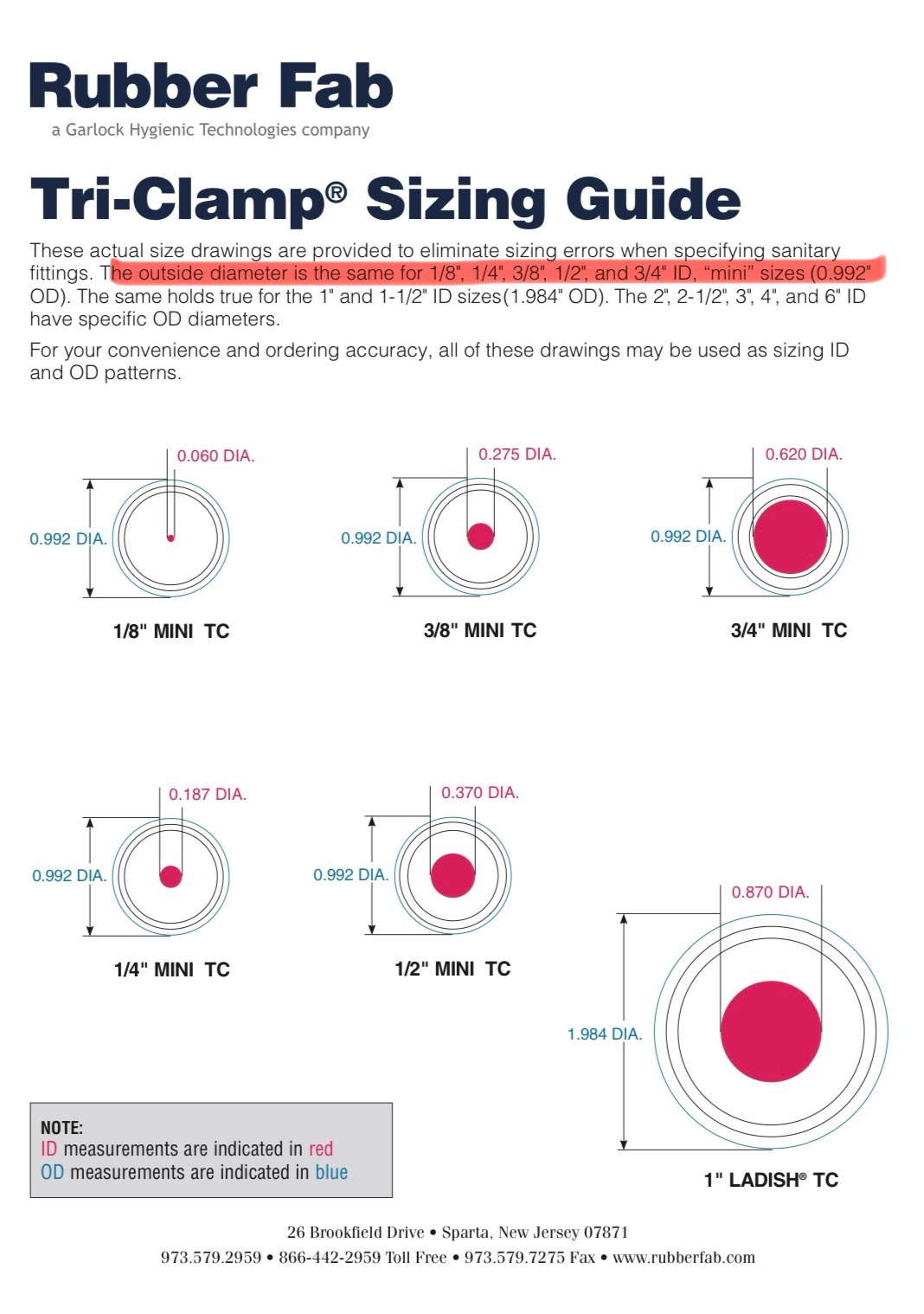

“The outside diameter is the same for 1/8", 1/4", 3/8", 1/2", and 3/4" ID, “mini” sizes (0.992" OD).”
8 Likes
1” bellow hose to a kf 45 or 65*
I once got stuck in a perpetual loop of measuring the flange and buying the wrong gaskets lol
1 Like
looks like it could be 3/4” triclamp. We use a lot of 1/2”/3/4” triclamp and the OD of the flange is 1”
4 Likes
another vote for triclamp 3/4” i have a few as well and they look like this and measure like this.
4 Likes
Been there lmao
1 Like
Thanks everyone.

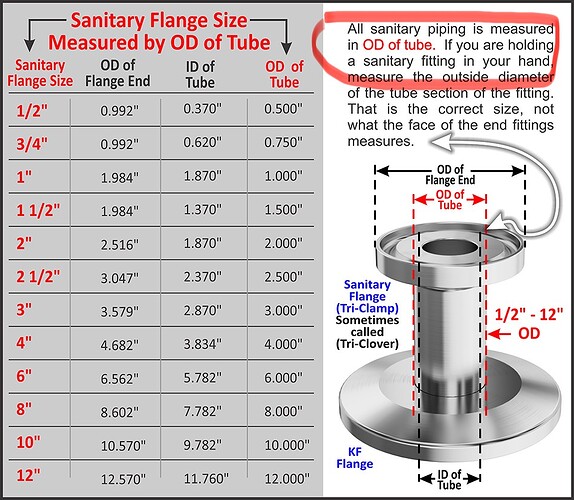

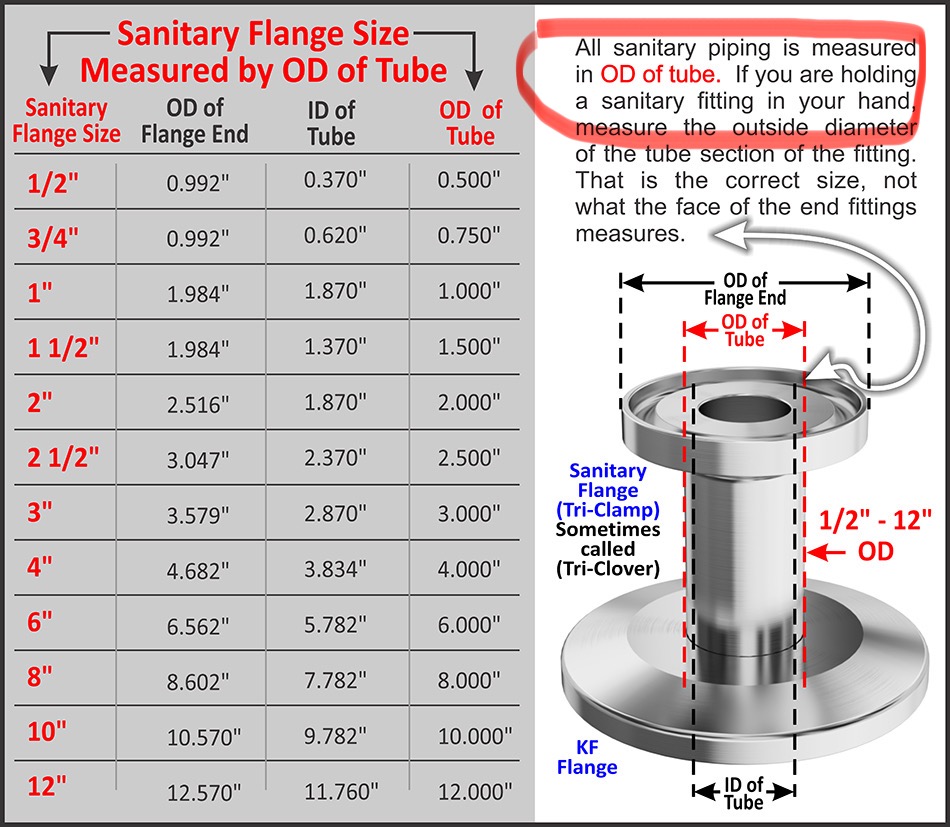

Yeah I remembered that about the flange sizes right after I posted. These sizing charts are very helpful though thank you.
