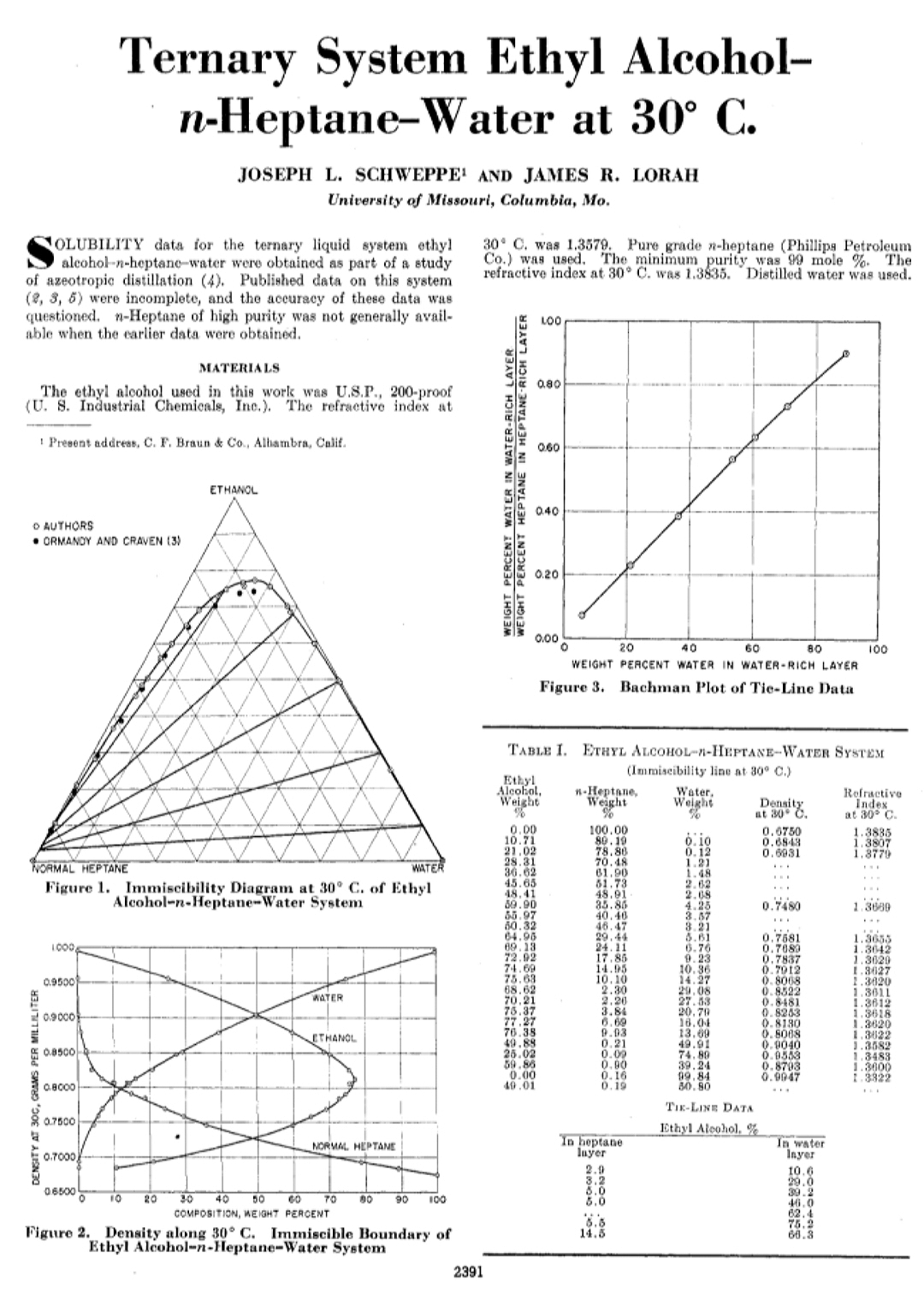

I don’t think you’re interpreting it correctly. The lines you drew are parallel with the sides of the triangle. That’s not how ternary phase charts work.
That whole area near the top corner is the area with high % ethanol and lower % heptane and water… which is what we’re dealing with. It appears anything over about 75 mol % ethanol will be homogenous, even with higher concentrations of heptane than denatured ethanol has.
Watch this:
I actually watched that before I initially replied. My arrows are color-coded constant concentration lines as I thought that might help the lack of scales (ironically, as it turns out.) Regardless, you’re right @back2thefuture: I had my ethanol mol% scale reversed, thinking the 95:5 ethanol:water azeotrope point was 5% from the water (3) vertex. Since it’s reversed (5% away from the ethanol (1) vertex,) with the very small, constant mole% heptane (accurately indicated by the red line) the critical solution/plait point is indicated at about what looks to be >40 mol% water. Cheers.
You are definitely on the right track, @back2thefuture, and thank you for the references! I am pleased to see you thinking critically about this problem, and in no way find your comments to be some sort of personal attack. I just assume positive intent, and I hope others do the same… especially because I or anyone else can accidentally sound like an asshole in plain text. I could very well be wrong in my hypothesis, and I certainly want to know if that is the case! It is only by honest reporting and thoughtful communication that we can find the truth, so more power to ya!
You are certainly correct about the enormous disparity in percentages between the [heptane-denatured ethanol] sold for cannabis extractions and the [full binary (w/o water) or ternary (with water) azeotropes] described in the literature. It is also accurate that the boiling points of heptane:ethanol and heptane:ethanol:water azeotropes are lower than those of heptane, ethanol or water… i.e. these are “positive azeotropes.” So yes, it does stand to reason that an azeotropic fraction could be fractionally distilled from the bulk of the solvent… at least to obtain lower levels of heptane, since the [full azeotropes] require so much more heptane than 5%. There are at least 4 major things I can see to consider in doing this:
The general rule of thumb for efficient fractional distillation of 2 materials is that they should have at least 20°C difference in boiling points. This is because most compounds do not have a steep vapor pressure curve just below their boiling point. Iow, even when something is still 10°C below its boiling point, it is probably already evaporating pretty rapidly. So unless one is using a rather tall and tortuous rectification column, it can be pretty difficult to adequately separate 2 substances closer than 20°C in their boiling points.
Going by the same logic, it stands to reason that the 2 substances having close boiling points will evaporate in a ratio closer to 1:1, depending on their vapor pressures at the given temperature/pressure of the system. This means that, assuming you know and use the precise boiling point of the azeotrope and no higher, for every fraction of azeotrope you evaporate at its boiling point this way, a slightly smaller fraction of the higher boiling point material will also vaporize. This is why the rectifier needs to be so tall.
The amount of heptane in the heptane-denatured ethanol is not always accurately 5%! From what little I have seen so far, it would appear the heptane concentrations in this stuff vary between about 3% and 15%! Although it would be nice to have reagent grade accuracy in concentrations, it cannot legitimately be expected when paying industrial grade prices. To put it another way, I don’t know of any conventions or standards dictating how accurate an ethanol “denaturant” concentration must be.
Something that could work in one’s favor is the fact that this particular ternary azeotrope, when recondensed, separates into those 2 layers with very different compositions! If one keeps the distillation slow and fractionated enough to effectively separate azeotrope from the bulk liquid ethanol, or at least to obtain some sort of biphasic system in the resulting distillate, one will have most of the heptane in the upper layer of said distillate. Even if the distillate is one continuous phase at whatever temperature it exits the distillation, it is possible to chill that liquid to get it to separate into layers! I believe you touched upon this point, in fact. Unfortunately, this behavior does not bode well for people doing cold liquid solvent extractions…
@YakdOff
The cold trap condensate is a very good indicator of how the liquid behaves during an extraction, @fresh.botanicals. You are seeing (smelling) the top layer, which has an extremely high concentration of pure n-heptane! See op.
You are also right to say that azeotropes are technically only a vapor phase phenomenon, but the practical upshot is that the liquid phase has those same relatively strong interactions between the molecules that cause the azeotropic behavior when it evaporates. My go-to example of this is the hydrogen bonding between ethanol and up to 5% water; one can fill a glass to the very brim with pure 200 proof ethanol, then add up to 5% water dropwise and it will never spill over… in fact, the volume in the glass will decrease!
The high concentration of ethanol, along with that last bit is one of 2 reasons I believe these [5% n-heptane-denatured ethanol] solutions are still very hygroscopic, considering that is such a strong characteristic of pure ethanol. The other reason is that I tested the relative densities of a fresh drum of n-heptane-denatured ethanol and an older drum of the same brand that had been opened and equilibrated with normal room air for over a week, both tested at room temperature within the same half hour. Note: Both samples were drawn from the bottom of the barrels, up through a hand operated piston pump…
The fresh stuff gave a hygrometer reading of “201 proof” indicating a fairly low density, as expected of pure ethanol with a bit of heptane in it.
The equilibrated stuff gave a hygrometer reading of exactly “190 proof”, indicating a higher density from the natural accumulation of water in the solution.
We are looking to run a few experiments with fresh denatured ethanol versus some denatured ethanol that has been through the works a few times now. In the meantime, do you think that the formation and growth of this azeotrope may interfere with the selectivity of cold ethanol as a solvent? For instance, it seems to me that the heptane rich layer(if it this phenomenon is actually happening) could be dissolving lipids.
Yes… it’s actually the binary phase behavior of the mixture that can interfere… which just so happens to boil off as an azeotrope. So it’s not the azeotrope that determines the liquid behavior in this case so much as the bilayer.
What do you think about this, separating etho from hexane azeotrope?
Well, that’s the 2nd time someone has asked me about it. It looks like a pretty typical azeotropic distillation method, but using some complicated chemistry.
That might have been me too in another thread, lol.
Keep it simple. Thank You!
So Photon is essentially saying that the denatured ethanol could cost the same or more as pure 200 proof ethanol in the long-run due to its tendency to lose its ability to optimally extract?
I imagine the denatured carries certain other costs as well, like some increase in dealing with safety issues and taking extra measures to ensure there is no residual solvent, etc.
Give us a call.
I think the main point here, details aside, is that you cant remove water from denatured ethanol with heptane with distillation once water gets in there and that you have to use molecular sieves.
So theres no way to use denatured solvent with heptane without having water build up indefinitely to a point where it would cross a distillation boundary and be left behind in a distillation, but at that point you have too much water in there anyways.
It’s some real bs.
Theres a ton of people learning this the hard way.
I’m pretty sure that “people learning this the hard way” are vendors’ main source of business at this point.
Basically, whatever solvent you use, you’d better evaluate the cost with remediation included.
We’ve gotten a few DM’s on this. Here is what our product specialist came back with:
So try 190 Proof Ethanol + Heptane and you will have a solution that will be composed of ethanol, water, and heptane. This will form an azeotrope. And could be good for extraction as adding the heptane to 190 Proof Ethanol will extract a cleaner product with less water solubles compared to straight 190 Proof.
Ethanol solutions may pick up moisture(water) during an extraction therefore lowering the proof. For example, 200 Proof could potentially end up around 190 Proof after a few extractions if the starting material is moist. A quick fix is to remediate your ethanol solution with Molecular Sieves. You shouldn’t have to throw it out.
But if one just removes the water from solution, wouldn’t you see a gradual increase of heptane over time in your solution?
The problem is not the azeotrope, itself, but the fact that the ternary azeotrope of heptane:ethanol:water is biphasic; it separates into 2 distinct liquid layers in a vessel! At first, the bottom layer is mostly ethanol with a little water, and the top layer is mostly heptane with a little ethanol. As this mixture goes through extractions, it picks up water, just like ALL ethanol solutions will do. However, as it picks up water, it holds onto it, even through solvent recovery, up to 15%! THIS is because the azeotrope of heptane:ethanol:water is biphasic, and that bottom layer ends up holding way more water than the binary ethanol:water azeotrope does, and it carries it homogenously through distillation! Therefore, without re-proofing the recovered mixture with desiccant/adsorbent, heptane-denatured ethanol will begin to extract more and more poorly after the very first extraction!
If you want to provide a truly useful low-tax ethanol to cannabis processors, we need to determine how and help them acquire the special use permits they require to use Specially Denatured Ethanol (S.D.A. which is “denatured” with 1% isopropanol or 1% acetone) or potable ethanol without the “vice tax” tacked onto it! I am willing to help how ever I can! Let’s make it happen @SolventDirect @Shadownaught!
We would definitely like to help make a TTB “article” for cannabis/hemp extraction. Thats the process that identifies an industrial use that can be considered tax exempt, but also plays into the SDA authorization.
Anybody know how to measure the water content in denatured ethanol? Titration? Maybe account for the error in ebulliometry?
Huh ?
I use those simple glass thermometer like floating meters that are cheap and fairly presice
Hydrometer i think it s callef
Would the denaturant throw off the reading by much?
No i don t think so
The diffrance is the weight of the denaturant to the weight of azeotropic ethanol that on the Total volume is minimal
