Item Model/Manufacturer: Liancui Technology

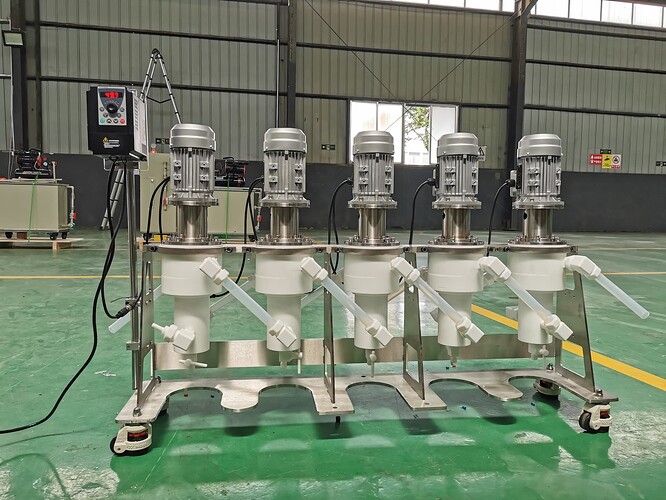

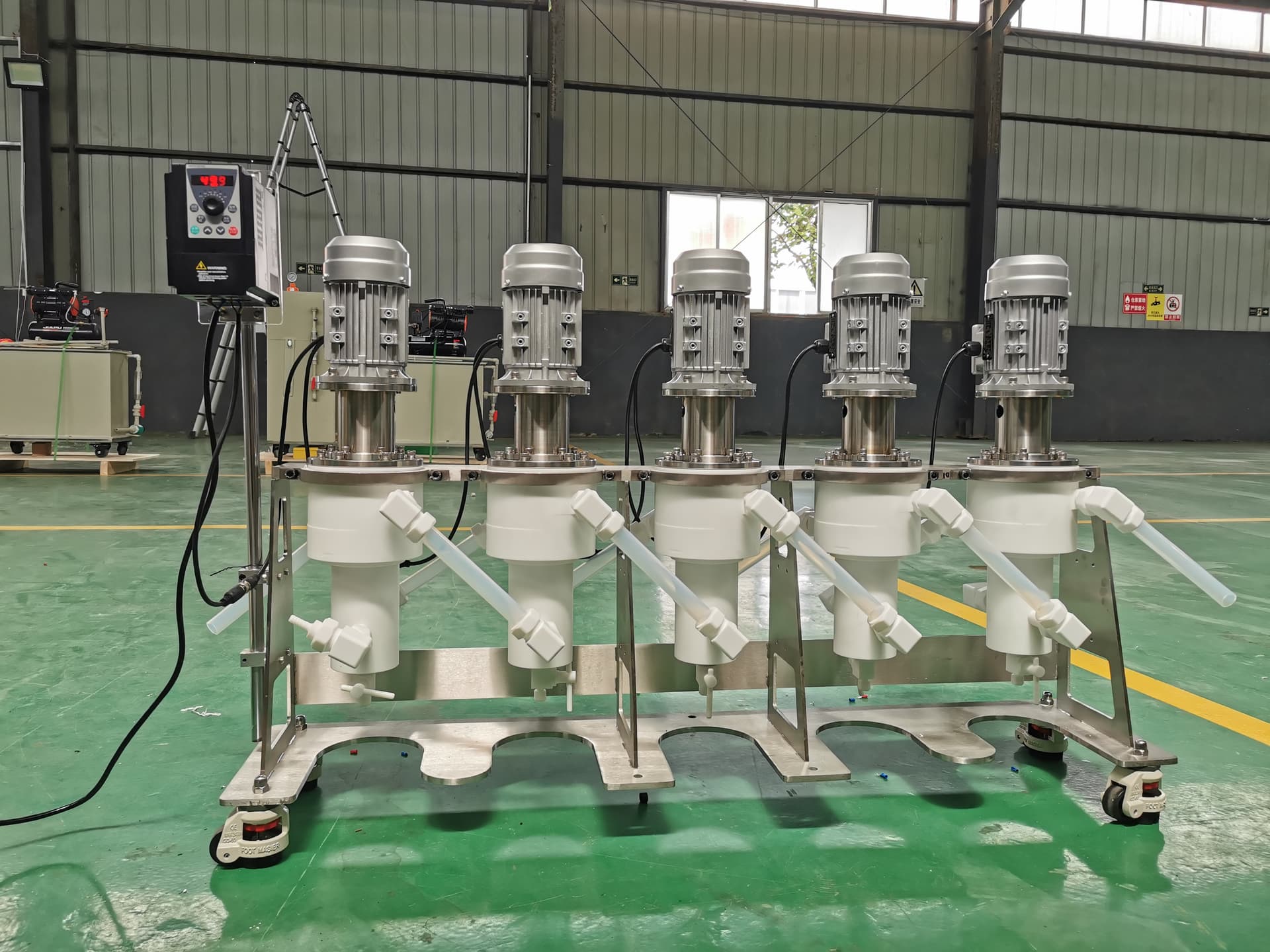

Description: Liquid liquid centrifugal extractor
Price/MSRP: $5000
Current location of item: Jinan city, Shandong Province
Estimated lead time: 30Days
Fulfillment: Drop shipped / Direct from seller
User support / Warranty: 12months
The centrifugal extractor is a new, fast and efficient liquid-liquid extraction and separation equipment. It has higher separation efficiency than traditional extraction equipment such as mixer settler and extraction towers, and is more conducive to continuous production.
Work Process:
1. Mixed mass transfer process
The light and heavy phase solutions enter the mixing chamber from the light phase inlet and heavy phase inlet in a certain proportion, and the mixing and mass transfer process is quickly completed under the action of the stirring paddle.
2. Two-phase separation process
The mixed liquid enters the drum under the action of the static turbine. In the cavity area formed by the web, the mixed liquid quickly rotates synchronously with the drum. Under the action of centrifugal force, the heavy phase liquid with high density gradually moves away during the upward flow process. The center of the drum moves toward the drum wall; the light phase liquid with low density gradually moves away from the drum wall and toward the center. The clarified two-phase liquid finally enters the collection chamber through each channel and flows out along the tangent square, completing the two-phase separation. process.
Application Filed:
- Wastewater treatment (such as phenolic wastewater treatment, waste acid water treatment);
- Pharmaceutical industry (such as preparation of pharmaceutical intermediates, Chinese medicine purification);
- Hydrometallurgy industry (such as copper, vanadium, nickel, rare earth elements and so many elements’ extraction and separation);
- Food industry (such as edible oil, food pigment, additive, lactic acid, citric acid and other extraction or separation);
- Fine chemicals (such as spice extraction, raw material of cosmetics extraction, vanillin extraction);
- Oil-water separation (such as remove water from crude oil/heavy oil/diesel oil and so on).
Please contact us if interested in:
kmichem66@gmail.com; phone/whatsapp: +86 18739923017
