FOR SALE
Across International : -30C - 40 Liter Chiller - with 30L/min Recirculating Pump
New in Crate
SKU #: AI-C30-40-50L
$6K OBO
**Description**:
BRAND NEW - STILL IN ORIGINAL CRATE FROM ACROSS
-30C 40L Recirculating Laboratory Chiller with 30L/Min Centrifugal Pump, 220V
Price/MSRP: $6,000.00 (obo)

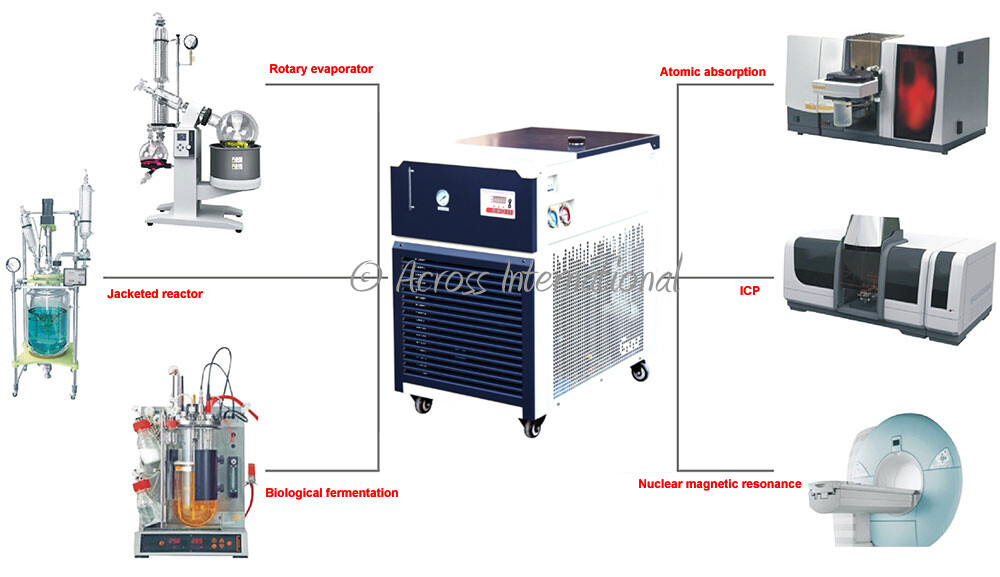

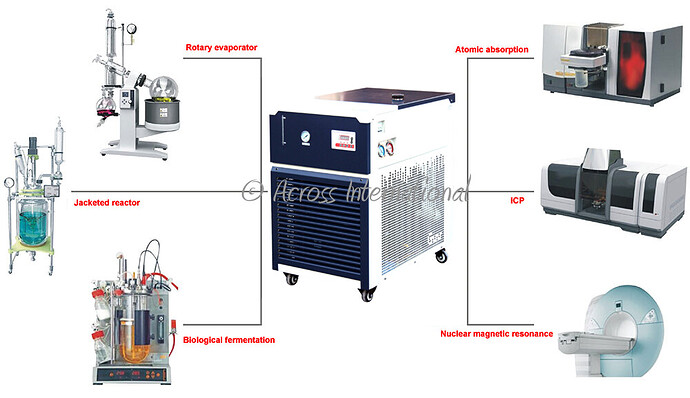

Ai C30-40 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C30-40 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -30°C/-22°F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
Features:
• UL 61010-1 and CSA C22.2 certified (optional)
• No dry ice or liquid nitrogen needed
• Advanced PID digital temp controller
• Built-in chilling fluid filter protects the recirculating pump and prevent blockage
• All steel construction for durability
• Eco-friendly R404A refrigerant
• Cost saving as the water consumption is completely eliminated
• Built-in casters for mobility
• Insulated tubing included
• Recommended for 50L rotary evaporators
What’s Included:
• Ai -30°C/-22°F recirculating chiller
• 3/8" insulated chilling fluid tubing, 11 ft
• (3x) 3/8" stainless steel chilling fluid connector with on/off valve
• PTFE sealing tape
• User's manual
Specs:
Model : C30-40-50L
Temperature range
Ambient to -30°C (No load)
Electrical requirements
strong text 220V 60Hz 1-PH 18A, 3,960 watts (Not compatible with 50Hz power)
Cooling capacity
(Assuming working environment
25°C/77°F)
@ 32°F/0°C: 5,000W
@ 14°F/-10°C: 3,000W
@-4°F/-20°C: 1,800W
@-22°F/-30°C: 1,000W
Compressor Make: KK
Power: 208-230V 60Hz 1-PH
Number of compressor: one
Refrigerant: R404A (3.2 kgs)
Recirculating pump
Model: 25PLBR30-10
Type: Centrifugal
Output: 280 watts
Pumping speed: 30 L/min or 8 gallon/min
Maximum pressure: 1 bar
Coolant outlet pressure Displayed on the built-in mechanical pressure gauge
Reservoir Material: Type 304 stainless steel, polished
Chilling fluid connection: 3/4" NPT
Drain port: 1/2" NPT
Overflow port: 3/8" hose barb
Capacity: 40 liters or 10.6 gallons
Dimensions: 17.5 x 17.5 x 9.5" (WxDxH)
Fan motor
Make: Boyoung
Model: YWF4E-400
Power: 220V 60Hz 1.3A 300W
Rotation speed: 1550 rpm
Flow rate: 4240 m3/hour
Cleaning : Clean radiator fins with a fin comb every three months
Temperature controller Type: Digital microprocessor PID controlled
Temperature sensor type : Pt100
Housing Powder coated type 42 stainless steel
Built-in swivel casters
Compressor over-temp protection
Compressor delay start protection
Short circuit and ground protection
Over-current protection
Over-voltage protection
Temperature Range:
Ambient to -30°C
Temperature Accuracy:
+/- 2°C
Current location of item: Sikston, Missouri
Estimated lead time: 1 Days
Fulfillment: 5-7 days Shipping - (can expedite shipping for fee)
