Cedarstone Industry — In-Stock *NEW* Centrifuges; Last Gen 1's GOTTA GO!

CannaBusiness Vendors
1

We have (1) Gen 1 Spinmatic 150 and (1) Gen 1 Spinmatic 250 on the floor ready to go.

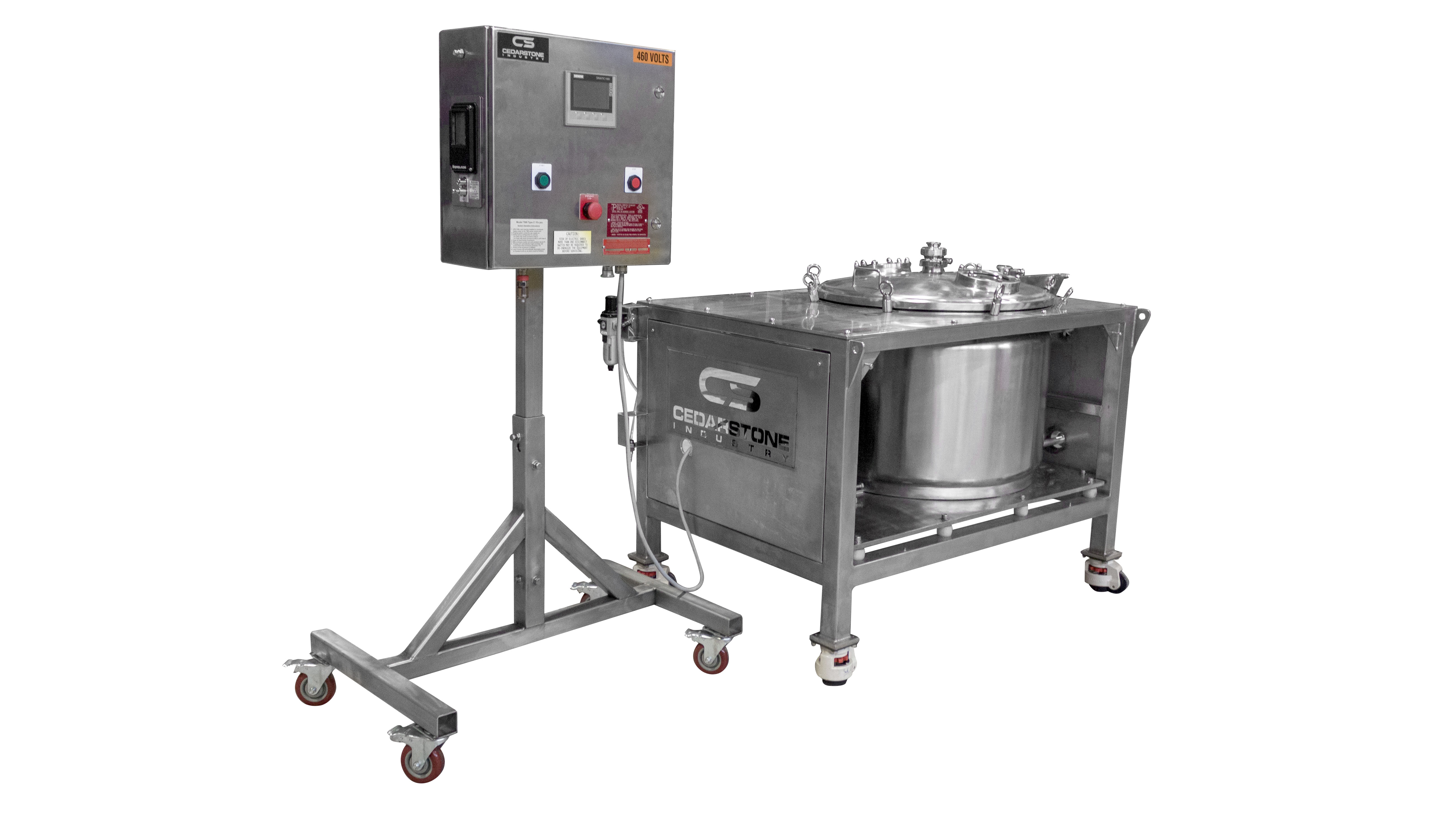

Centrifuge-Compressed
Centrifuge-Compressed2400×1350 313 KB

  • UL listed Class 1 Division 2 Explosive Proof Control Panel.
  • PSI (Pressure Safety Inspectors) Peer Reviewed. [ CLICK HERE ]
  • Compliance with the latest standards, directives, and GMP requirements.
  • Complete modular design delivery; no need for on-site installation.
  • Motor and transmission parts are enclosed to ensure safe operation.
  • Advanced control system and HMI operation interface to achieve single-person operation.
  • Explosion-Proof motor from Toshiba (or equivalent).
  • Siemens PLC and touch screen.
  • Optimized design to allow temperature extraction at -60°C.
  • Reasonable sealing structure design to achieve reliable sealing of bearing.
  • 304 Stainless Steel, EPDM food-grade seal.
  • Sanitary design, internal Ra ≤ 0.2um without any dead corner.
  • Automatic valve can be configured to realize automatic control of feeding and discharging.
  • Outer stationary barrel has a cooling jacket.
  • Fully adjustable agitation speed and time settings.
  • Removeable long side panels.

The Spinmatic 150 will handle 35 Lbs. of Biomass a run. 5 HP motor.
The Spinmatic 250 will handle 70 Lbs. of Biomass a run. 7.5 HP motor.

Ethanol Ratio is 1:4 by weight, and runtime is between 15 - 25 minutes.
Both models run on 460V / 3-Phase / 60 Hz. C1D1 Motor, C1D2 Controls with Air Purge.

Our 150 model is $49,000 USD, does not include shipping.
The 250 model is $79,000 USD, also does not include shipping.

These are the last of the pair, so if you are interested? Let me know.

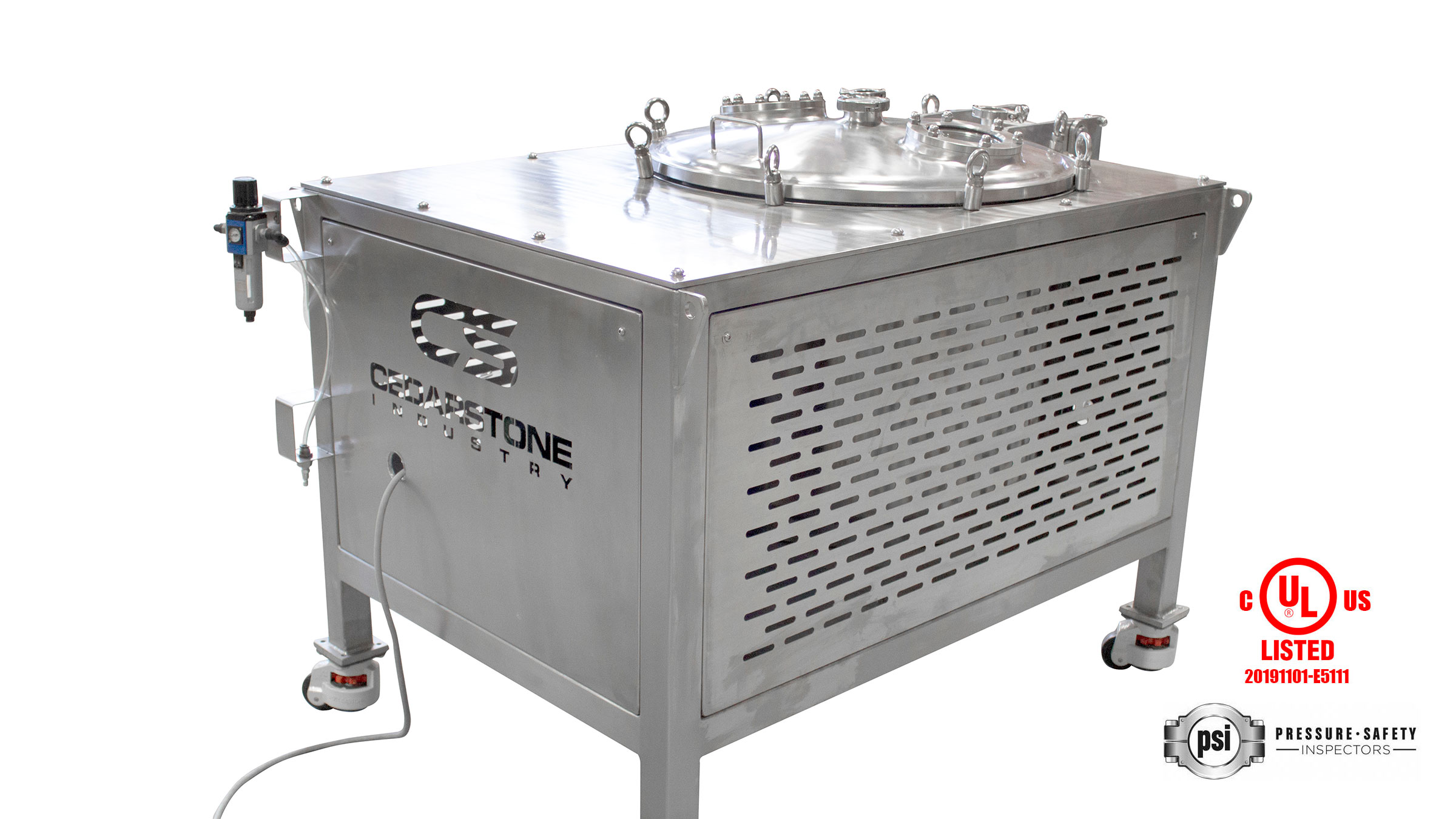

Spinmatic 150 (3)
Spinmatic 150 (3)5184×2916 1.03 MB

2

Heptane/ HExane compatible?

3

Yes and no. By no, it’s more a: We have to change out seals. The metal is of course capable, but the seals are currently EPDM. We would need to change to Viton or another preferred material. The lid seal is the one seal where we would have to really look into that, as so far we have not had the request and have not had to have that made.

1 Like
4

As a note: We are out of stock again, but have more inbound. They often sell before they are on the floor.

The price is also old, since this thread is a year ago. Currently, Spinmatic 150 is $56,350 USD while the larger 250 is $90,850. The change is due to increasing cost for materials and parts.

2 Likes
5

Hey, I am looking for something in Canada. Can you DM?
